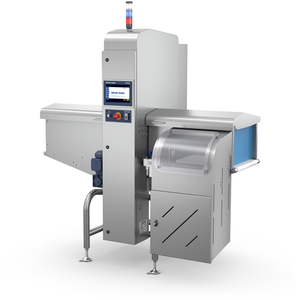

The X34 X-ray Inspection System is a single lane solution designed for the inspection of small and medium sized packaged products.
X34 Series
X-ray Technology for Your Every Need.Automated set-up coupled with intelligent software improve uptime, reduce costs and enhance detection sensitivity to provide the ultimate in product safety with minimal FRR.
Reaching Outstanding Detection Levels
An optimum power generator, combined with a 0.4 mm detector, maximizes detection sensitivity and offers precise detection of small contaminants.
Automated Product Set-Up
An easy-to-use interface to make product changeovers and machine operation easier to manage and removes the possibility of human programming errors.
Class-leading Software Capabilities
Enhanced software offers reliable contamination detection whilst performing quality and packaging integrity checks, ensuring brand protection.
Material No.: 3046871900
Product Family:XRInspection00040013
Specifications - X34 Series
| IP Rating | IP65 IP69 |
| Connectivity | Ethernet OPC UA USB |
| Inspection Solution | X-ray Inspection |
| Max Product Width | 380 mm |
| HMI | 10.1" Touchscreen |
| Packaging Type | Cardboard Metalized Film Plastic |
| Cooling Method | Air Conditioner |
| Product Flow | Conveyor |
| X-ray Beams | Single vertical beam |
| X-ray Generator | 100 W, up to 84 kV, up to 3.3 mA Beryllium Tube |
| Inspection Application | Clip Detection Completeness Check Contamination Detection Fill level Check Integrity Check Mass Control Product-Trapped in Seal |
| Product Characteristic | Small-Medium Packages |
| Industry | Chemical Food & Beverage Pharma & Biotech |
| Max Product Height | 200 mm |
| Industry Segment | Bakery and Confectionary Beer, Wine and Other Alcoholic Beverages Bulk Chemicals Cosmetics Dairy Fine and Specialist Chemicals Food Additives Meat & Poultry & Seafood Nutraceuticals Oils and Fats Pet Food and Animal Feed Pharma Ready Meals Snack Foods Sugar Starch and Yeast Water and other Non-Alcoholic Beverages |
| X-ray Detector | Single Energy, HiQiQ2 technology |
| Max Product Weight | 25 kg |
| X-ray Emissions | < 1uSv/hr |
| Max Line Speed | 60 m/min |
| Max Throughput | 300 ppm |
| Diode Size | 0.4 mm |
Minimum False Reject Rates (FRR)
ContamPlus inspection algorithms enhance detection sensitivity resulting in minimum FRR, optimum brand protection and reduced product waste.
Detection Optimization Options
0.4 mm diodes allow you to reach maximum detection sensitivity levels according to your individual product and packaging application.
Low Power = Reduced TCO
The low powered generator reduces energy consumption and protects profitability by reducing the TCO, whilst supporting sustainability values.
5 Year Generator Warranty
Minimize your downtime and protect the most valuable and expensive part of your inspection system, the x-ray generator, for 5 years when you purchase it with a Standard or Comprehensive Care Package.
Global Presence, Local Support
A global network of service experts provide fast remote and on-site support. Our comprehensive service offering allows you to achieve regulatory compliance, high performance, and maximum uptime throughout the life cycle of your product inspection equipment.
Enhancing Production Data Visibility
Ensure the highest levels of regulatory compliance through real-time data collection. ProdX, our PC-based software, constantly monitors and fully documents all production parameters, quality incidents, user interactions and performance verification routines.
