The X34C X-ray Inspection System is a single lane solution with a small footprint designed to inspect small, individually wrapped products at high lin...

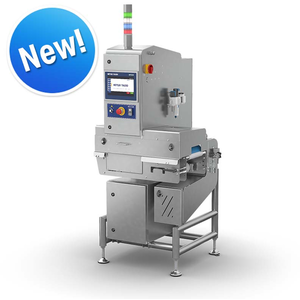

X34C Series, System
Compact, High-Speed and Precise.A unique solution which inspects individually wrapped food or pharmaceutical products at high line speeds. The X34C combines a short total footprint with an optimised focal distance to enhance detection of non-conforming products and reducing waste.
Compact Design to Maximise Line Space
With 700-mm system length, a compact solution can be installed into the smallest of spaces to avoid line constraints when space is a premium.
Inspection at High Line Speeds
Designed to offer the highest levels of contamination detection in individually wrapped products at line speeds of up to 120 m/min.
Precise Detection of Contaminants
An optimised focal distance for individual packs enhances detection levels, increases probability of detection and reduces product waste.
Material No.: 3071894500
Product Family:XRInspection00040010
Specifications - X34C Series, System
| IP Rating | IP55 IP65 |
| Connectivity | Ethernet OPC UA USB |
| Inspection Solution | X-ray Inspection |
| Max Product Width | 170 mm |
| HMI | 10.1" Touchscreen |
| Packaging Type | Cardboard Metalized Film Plastic |
| Cooling Method | Air Conditioner Passive fan assisted internal cooling |
| Product Flow | Conveyor |
| X-ray Beams | Single vertical beam |
| X-ray Generator | 100 W, up to 84 kV, up to 3.3 mA Beryllium Tube |
| Inspection Application | Clip Detection Completeness Check Contamination Detection Fill level Check Integrity Check Mass Control Product-Trapped in Seal |
| Product Characteristic | Small Individual Wrapped Products |
| Industry | Chemical Food & Beverage Pharma & Biotech |
| Max Product Height | 35 mm |
| Industry Segment | Bakery and Confectionary Beer, Wine and Other Alcoholic Beverages Bulk Chemicals Cosmetics Dairy Fine and Specialist Chemicals Food Additives Meat & Poultry & Seafood Nutraceuticals Oils and Fats Pet Food and Animal Feed Pharma Ready Meals Snack Foods Sugar Starch and Yeast Water and other Non-Alcoholic Beverages |
| X-ray Detector | Single Energy, HiQiQ2 Compact Technology |
| Max Product Weight | 500 g |
| X-ray Emissions | < 1uSv/hr |
| Max Line Speed | 120 m/min |
| Max Throughput | 750 ppm |
| Diode Size | 0.4 mm |
Fast and Repeatable Product Changeovers
An easy-to-use interface makes product changeovers short and machine operation easier to manage, removing the possibility of human programming errors and training.
Reduce Product Waste
Inspection of individual packs can assist with waste reduction and increase operational efficiencies. Removing one product earlier in the process avoids multi-product end of line rejection and increased waste.
Minimum False Reject Rates (FRR)
Your brand reputation is continually upheld as our proprietary ContamPlusTM x-ray inspection algorithms reliably optimise detection levels, minimise FRR and reduce product waste.
Optimised Detection for Target Products
0.4mm diodes and a 100W Optimum Power Generator allows you to reach maximum detection sensitivity levels according to your individual product and packaging application.
5-Year Generator Warranty
Minimize your downtime and protect the most valuable and expensive part of your inspection system, the x-ray generator, for 5 years when you purchase it with a Standard or Comprehensive Care Package.
Global Service Support
A global network of service experts provide fast remote and on-site support. Our comprehensive service offering allows you to achieve regulatory compliance, high performance, and maximum uptime throughout the life cycle of your product inspection equipment.
Enhancing Production Data Visibility
Ensure the highest levels of regulatory compliance through real-time data collection. ProdX, our PC-based software, constantly monitors and fully documents all production parameters, quality incidents, user interactions and performance verification routines.
