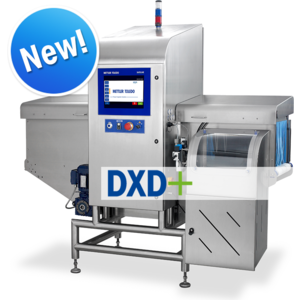

X36 Series DXD+ X-ray Inspection System
Advanced Detector Technology.The cutting edge DXD+ dual energy detector, which can be incorporated into the X36, offers unrivalled contamination detection of hard-to-find contaminants such as calcified bone, rubber and glass in textured and overlapping product applications.
Exceeding Detection Requirements
DXD+ detector technology can surpass market expectations for contamination detection and meet the most demanding customer specifications.
Improved Inspection with AMD
Powered by our AMD software with the latest advanced material discrimination algorithms, the DXD+ offers exemplary contamination detection.
User-friendly Features
Automated product set-up and intelligent software improve uptime, reduce costs and enhance detection sensitivity and minimize False Reject Rates.
Material No.: 30541251500
| IP Rating | IP65 IP69 |
| Connectivity | Ethernet OPC UA USB |
| Inspection Solution | X-ray Inspection |
| Max Product Width | 580 mm |
| HMI | 15.6" Touchscreen |
| Packaging Type | Cardboard Cartons Metalized Film Plastic Trays |
| Cooling Method | Air Conditioner & Radiator Pump |
| Product Flow | Conveyor |
| X-ray Beams | Single vertical beam |
| X-ray Generator | 420 W, up to 84 kV, up to 5.0 mA Beryllium Tube |
| Inspection Application | Clip Detection Completeness Check Contamination Detection Fill level Check Integrity Check Mass Control Product-Trapped in Seal |
| Product Characteristic | Medium-Large Packages |
| Industry | Chemical Food & Beverage Pharma & Biotech |
| Max Product Height | 300 mm |
| Industry Segment | Bakery and Confectionary Beer, Wine and Other Alcoholic Beverages Bulk Chemicals Cosmetics Dairy Fine and Specialist Chemicals Food Additives Meat & Poultry & Seafood Nutraceuticals Oils and Fats Pet Food and Animal Feed Pharma Ready Meals Snack Foods Sugar Starch and Yeast Water and other Non-Alcoholic Beverages |
| X-ray Detector | Dual Energy, DXD+ Technology |
| Max Product Weight | 25 kg |
| X-ray Emissions | < 1uSv/hr |
| Max Line Speed | 40 m/min |
| Max Throughput | 500 ppm |
| Diode Size | 0.4 mm |
Leading Innovation
The DXD+ is at the forefront of R&D in product inspection technologies. This innovative detector will help protect brands and promote product safety.
Meeting Customer Requirements
The X36 with DXD+ is a highly configurable solution, offering the highest levels of integrity checks across single or multiple product lanes. Inspect products at throughputs that meet the demands of production for remarkable brand protection and compliance.
Five-year Generator Warranty
Minimize your downtime and protect the most valuable and expensive part of your inspection system, the x-ray generator, for five years when purchased with a Standard or Comprehensive Care Package.
Global Service Support
A global network of experts provides fast remote and on-site support. Our comprehensive service offering supports you to achieve regulatory compliance, highest performance and maximum uptime throughout the lifecycle of your product inspection equipment.
Enhancing Production Data Visibility
Ensure the highest levels of regulatory compliance through real-time data collection. ProdX, our PC-based software, constantly monitors and fully documents all production parameters, quality incidents, user interactions and performance verification routines.
