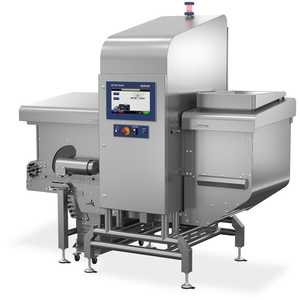

X36 Series Bulk Flow

Innovative Bulk Solution.Designed for loose-flow bulk-food products, the X36 Series Bulk X-ray system offers contaminant detection prior to further value being added to your product, and is able to inspect up to 14,000 kg of product per hour.

Minimizing Product Waste

A multi-lane scoop reject option is available for the rejection of small amounts of product; this minimizes product waste and saves costs.

Reaching Outstanding Detection Levels

Your brand reputation is maintained at all times, as our unique ContamPlusTM X-ray inspection algorithms optimize detection levels with each process.

Complying with Hygiene Standards

The class-leading hygienic design follows GMP, NFS and EHEDG principles, with IP69 as the standard and an innovative design that offers full cleaning access.

Material No.: 3054125000

Call for Quote
Specifications - X36 Series Bulk Flow
IP Rating
IP69
Connectivity
Ethernet
OPC UA
USB
Inspection Solution
X-ray Inspection
HMI
15.6" Touchscreen
Packaging Type
Unpackaged
Cooling Method
Air Conditioner
Product Flow
Conveyor
X-ray Beams
Single vertical beam
X-ray Generator
100 W, up to 84 kV, up to 1.2 mA Beryllium Tube
Inspection Application
Contamination Detection
Product Characteristic
Loose Flow
Industry
Chemical
Food & Beverage
Pharma & Biotech
Max Product Height
50 mm
Industry Segment
Agriculture and Bulk Foods
Bakery and Confectionary
Beer, Wine and Other Alcoholic Beverages
Bulk Chemicals
Cosmetics
Dairy
Fine and Specialist Chemicals
Food Additives
Meat & Poultry & Seafood
Nutraceuticals
Oils and Fats
Pet Food and Animal Feed
Pharma
Ready Meals
Snack Foods
Sugar Starch and Yeast
Water and other Non-Alcoholic Beverages
X-ray Detector
Single Energy, HiGain Technology
X-ray Emissions
< 1uSv/hr
Max Line Speed
60 m/min
Max Throughput
14000 kg/hr
Diode Size
0.4 mm
0.8 mm

Improving OEE

The X36 Series Bulk's intuitive software monitors the system’s overall equipment effectiveness (OEE), providing you with relevant information so that you can make improvements to the machine.

Offering Application Versatility

The X36 Bulk Flow provides outstanding detection of contaminants in various applications including fresh, frozen or dried products; nuts, grains and pulses, extruded snacks, fruits, cereals, vegetables, seafood, minced meat, confectionery and pet foods.

Safeguarding Products At High Speeds

The X36 Series Bulk is capable of inspecting throughputs of up to 14,000 kg/hour, depending on product depth and density, ensuring food safety while maximizing line efficiency.

Proving Due Diligence and Traceability

Multiple connectivity options enable the X36 Series Bulk to be connected to a manufacturer's network, giving only authorized personnel the ability to analyze inspection and performance data from a remote location.

5-Year Generator Warranty

Minimize your downtime and protect the most valuable and expensive part of your inspection system, the x-ray generator, for 5 years when you purchase it with a Standard or Comprehensive Care Package.

Global Service Support

A global network of service experts provide fast remote and on-site support. Our comprehensive service offering allows you to achieve regulatory compliance, high performance, and maximum uptime throughout the life cycle of your product inspection equipment.

Enhancing Production Data Visibility

Ensure the highest levels of regulatory compliance through real-time data collection. ProdX, our PC-based software, constantly monitors and fully documents all production parameters, quality incidents, user interactions and performance verification routines.

Documentation

Datasheets

X36 Series Bulk Flow Datasheet | Free Download
The X36 Series Bulk Flow x-ray inspection system has been designed specifically to inspect unpackaged products in a bulk format.
