The X3710’s low power generator provides high precision levels of contamination detection, for food and pharmaceutical manufacturers.

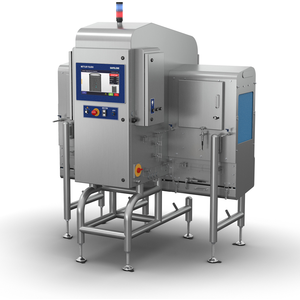

X37 Series – X3710
Simply Safeguarding Businesses.The X3710 can inspect up to 300 products per minute (depending on product dimensions), ensuring future-proof inspection capabilities can be achieved if throughput rates need to be increased.
Achieving Detection Precision
The X3710's energy-efficient 20W X-ray generator achieves reliable precision when it comes to physical contamination detection.
Upholding Brand Integrity
Our proprietary software, ContamPlusTM, conducts a full range of integrity checks and removes sub-standard products from the production line.
Safeguarding Product Rejection
We provide a range of pusher and air blast reject options for the effective rejection of faulty products without damaging them.
Material No.: 3054114300
Product Family:XRInspection00040014
Specifications - X37 Series – X3710
| IP Rating | IP65 IP69 |
| Connectivity | Ethernet OPC UA USB |
| Inspection Solution | X-ray Inspection |
| Max Product Width | 150 mm |
| HMI | 15.6" Touchscreen |
| Packaging Type | Cardboard Composite Cans Metal Cans Metalized Film Plastic |
| Cooling Method | Passive fan assisted internal cooling |
| Product Flow | Conveyor |
| X-ray Beams | Single horizontal beam |
| X-ray Generator | 20 W, up to 84 kV, up to 0.25 mA Glass Tube |
| Inspection Application | Clip Detection Completeness Check Contamination Detection Fill level Check Integrity Check Mass Control Product-Trapped in Seal |
| Product Characteristic | Tall Rigid Containers |
| Industry | Chemical Food & Beverage Pharma & Biotech |
| Max Product Height | 280 mm |
| Industry Segment | Bakery and Confectionary Beer, Wine and Other Alcoholic Beverages Bulk Chemicals Cosmetics Dairy Fine and Specialist Chemicals Food Additives Meat & Poultry & Seafood Nutraceuticals Oils and Fats Pet Food and Animal Feed Pharma Ready Meals Snack Foods Sugar Starch and Yeast Water and other Non-Alcoholic Beverages |
| X-ray Detector | Single Energy, HiGain Technology |
| Max Product Weight | 30 kg |
| X-ray Emissions | < 1uSv/hr |
| Max Line Speed | 30 m/min |
| Max Throughput | 300 ppm |
| Diode Size | 0.8 mm |
Maximizing Routine Cleaning Uptime
Large access hatches with LED lighting in the tunnels improve access to the X-ray system for effective cleaning purposes. Magnetic safety switches quickly identify open doors, enabling maximum uptime to be achieved.
Protecting a Wide Range of Products
The X3710 is designed to inspect a large range of tall packaging types (whether rigid or flexible), including composite cans, cartons, tubes, plastic containers and doypacks.
Reducing TCO with Low Energy
Our low-powered 20W generator reduces energy consumption and protects profitability by reducing total cost of ownership (TCO) while supporting sustainability values.
5-Year Generator Warranty
Minimize your downtime and protect the most valuable and expensive part of your inspection system, the x-ray generator, for 5 years when you purchase it with a Standard or Comprehensive Care Package.
Global Service Support
A global network of service experts provide fast remote and on-site support. Our comprehensive service offering allows you to achieve regulatory compliance, high performance, and maximum uptime throughout the life cycle of your product inspection equipment.
Enhancing Production Data Visibility
Ensure the highest levels of regulatory compliance through real-time data collection. ProdX, our PC-based software, constantly monitors and fully documents all production parameters, quality incidents, user interactions and performance verification routines.
