The X3720’s detector technology uses up to five times less power than traditional x-ray systems to inspect tall, rigid and flexible packaging.

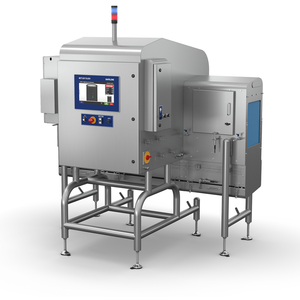

X37 Series – X3720
Adaptable High-speed Solution.A flexible X-ray inspection solution designed to inspect a diverse range of applications at high line speeds, in packaging formats such as metal or composite cans, plastic containers and doypacks.
Offering High Versatility of Detection
The X3720 offers a 0.8 mm diode size and a choice of generator options, ensuring reliable and outstanding detection sensitivity for all applications.
Reducing TCO with Low Power
The X3720 operates with low level X-ray power, reducing overall power consumption and contributing to lower running costs.
Safeguarding High-speed Rejection
A variety of optional reject mechanisms are available to ensure the quick and safe removal of your faulty products at line speeds of up to 1,000 ppm.
Material No.: 3054114400
Product Family:XRInspection00040015
Specifications - X37 Series – X3720
| IP Rating | IP65 IP69 |
| Connectivity | Ethernet OPC UA USB |
| Inspection Solution | X-ray Inspection |
| Max Product Width | 170 mm |
| HMI | 15.6" Touchscreen |
| Packaging Type | Cardboard Composite Cans Metal Cans Metalized Film Plastic |
| Cooling Method | Air Conditioner |
| Product Flow | Conveyor |
| X-ray Beams | Single horizontal beam |
| X-ray Generator | 100 W, up to 84 kV, up to 1.2 mA Beryllium Tube 100 W, up to 84 kV, up to 1.2 mA Glass Tube 420 W, up to 84 kV, up to 5.0 mA Beryllium Tube 420 W, up to 84 kV, up to 5.0 mA Glass Tube |
| Inspection Application | Clip Detection Completeness Check Contamination Detection Fill level Check Integrity Check Mass Control Product-Trapped in Seal |
| Product Characteristic | Tall Rigid Containers |
| Industry | Chemical Food & Beverage Pharma & Biotech |
| Max Product Height | 300 mm |
| Industry Segment | Bakery and Confectionary Beer, Wine and Other Alcoholic Beverages Bulk Chemicals Cosmetics Dairy Fine and Specialist Chemicals Food Additives Meat & Poultry & Seafood Nutraceuticals Oils and Fats Pet Food and Animal Feed Pharma Ready Meals Snack Foods Sugar Starch and Yeast Water and other Non-Alcoholic Beverages |
| X-ray Detector | Single Energy, HiGain Technology |
| Max Product Weight | 30 kg |
| X-ray Emissions | < 1uSv/hr |
| Max Line Speed | 100 m/min |
| Max Throughput | 1000 ppm |
| Diode Size | 0.8 mm |
Upholding Brand Integrity
Our proprietary X-ray software, ContamPlusTM, simultaneously inspects products for physical contaminants as well as performing product integrity checks.
Achieving Hygiene Compliance
Following GMP, NFS and EHEDG principles (IP65 as standard / optional IP69 upgrade), the X3720 offers class-leading hygienic design.
Safeguarding Product Rejection
The lockable reject bin on the X3720 ensures that only authorized personnel have access to rejected products. The large view window facilitates easier reject set up, ensuring maximum uptime.
5-Year Generator Warranty
Minimize your downtime and protect the most valuable and expensive part of your inspection system, the x-ray generator, for 5 years when you purchase it with a Standard or Comprehensive Care Package.
Global Service Support
A global network of service experts provide fast remote and on-site support. Our comprehensive service offering allows you to achieve regulatory compliance, high performance, and maximum uptime throughout the life cycle of your product inspection equipment.
Enhancing Production Data Visibility
Ensure the highest levels of regulatory compliance through real-time data collection. ProdX, our PC-based software, constantly monitors and fully documents all production parameters, quality incidents, user interactions and performance verification routines.
