The X3725 is the perfect solution for food & pharmaceutical manufacturers requiring a horizontal single x-ray beam system with an integrated conveyor.

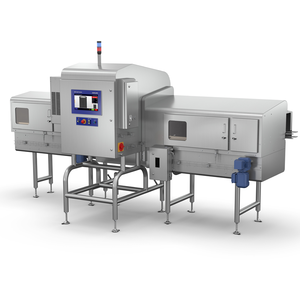

X37 Series – X3725
Integrated Conveyor Solution.The design of the X3725 offers product-specific guide rails for consistent product presentation to the system. Ensuring maximum detection and rejection of physically contaminated packs on an integrated reject conveyor.
Offering High Versatility of Detection
The X3725 reliably inspects and rejects non-conforming products that utilize our unique proprietary X-ray software ContamPlusTM.
Optimizing Detection Capabilities
Full-length, product-specific guide rails guarantee consistent product presentation into the X-ray system, thus ensuring optimal detection.
Improving OEE
Production uptime is enhanced through connectivity options that allow interaction with the X3725 and access to statistics, images and reports.
Material No.: 3054114500
Product Family:XRInspection00040016
Specifications - X37 Series – X3725
| IP Rating | IP65 IP69 |
| Connectivity | Ethernet OPC UA USB |
| Inspection Solution | X-ray Inspection |
| Max Product Width | 180 mm |
| HMI | 15.6" Touchscreen |
| Packaging Type | Cardboard Composite Cans Metal Cans Metalized Film Plastic |
| Cooling Method | Air Conditioner & Radiator Pump |
| Product Flow | Conveyor |
| X-ray Beams | Single horizontal beam |
| X-ray Generator | 420 W, up to 84 kV, up to 5.0 mA Beryllium Tube 420 W, up to 84 kV, up to 5.0 mA Glass Tube |
| Inspection Application | Clip Detection Completeness Check Contamination Detection Fill level Check Integrity Check Mass Control Product-Trapped in Seal |
| Product Characteristic | Tall Rigid Containers |
| Industry | Chemical Food & Beverage Pharma & Biotech |
| Max Product Height | 350 mm |
| Industry Segment | Bakery and Confectionary Beer, Wine and Other Alcoholic Beverages Bulk Chemicals Cosmetics Dairy Fine and Specialist Chemicals Food Additives Meat & Poultry & Seafood Nutraceuticals Oils and Fats Pet Food and Animal Feed Pharma Ready Meals Snack Foods Sugar Starch and Yeast Water and other Non-Alcoholic Beverages |
| X-ray Detector | Single Energy, HiGain Technology |
| Max Product Weight | 30 kg |
| X-ray Emissions | < 1uSv/hr |
| Max Line Speed | 100 m/min |
| Max Throughput | 800 ppm |
| Diode Size | 0.8 mm |
Protecting Products at High Speeds
The X3725 is capable of inspecting tall, rigid, and flexible packaging at up to 800 products per minute for physical contaminants, plus product and packaging integrity.
Complying with Industry Standards
The X3725 offers full compliance with a range of international safety standards, including ISO, while offering enhanced user functionality.
Safeguarding Product Rejection
At high line speeds, the X3725 accurately and securely forwards faulty products to a driven reject table, which then houses them in a lockable location without damaging the packaging. This allows for further investigation and potential reworks.
5-Year Generator Warranty
Minimize your downtime and protect the most valuable and expensive part of your inspection system, the x-ray generator, for 5 years when you purchase it with a Standard or Comprehensive Care Package.
Global Service Support
A global network of service experts provide fast remote and on-site support. Our comprehensive service offering allows you to achieve regulatory compliance, high performance, and maximum uptime throughout the life cycle of your product inspection equipment.
Enhancing Production Data Visibility
Ensure the highest levels of regulatory compliance through real-time data collection. ProdX, our PC-based software, constantly monitors and fully documents all production parameters, quality incidents, user interactions and performance verification routines.
