Utilizing split beam x-ray technology, the X3730 offers increased detection sensitivity to inspect a wide range of tall, rigid food & pharmaceutical p...

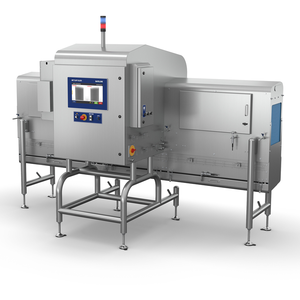

X37 Series – X3730
Split Beam X-ray Solution.The X3730 X-ray system offers outstanding detection sensitivity in cans and glass containers, utilizing a split beam X-ray to expose physical contaminants in the entire container.
Offering High Versatility of Detection
The X3730 provides a 0.8 mm diode size and a choice of generator power options, ensuring outstanding detection sensitivity across the whole container.
Upholding Brand Integrity
Our proprietary software, ContamPlusTM, conducts a full range of integrity checks and removes sub-standard products from the production line.
Protecting Products at High Speeds
The X3730 is capable of inspecting and rejecting up to 1,000 containers per minute, depending on your application.
Material No.: 3054114600
Product Family:XRInspection00040017
Specifications - X37 Series – X3730
| IP Rating | IP65 IP69 |
| Connectivity | Ethernet OPC UA USB |
| Inspection Solution | X-ray Inspection |
| Max Product Width | 170 mm |
| HMI | 15.6" Touchscreen |
| Packaging Type | Cardboard Glass Metal Cans Metalized Film Plastic |
| Cooling Method | Air Conditioner Air Conditioner & Radiator Pump |
| Product Flow | Conveyor |
| X-ray Beams | Split beam |
| X-ray Generator | 100 W, up to 84 kV, up to 1.2 mA Beryllium Tube 100 W, up to 84 kV, up to 1.2 mA Glass Tube 420 W, up to 84 kV, up to 5.0 mA Beryllium Tube 420 W, up to 84 kV, up to 5.0 mA Glass Tube |
| Inspection Application | Completeness Check Contamination Detection Fill level Check Integrity Check Mass Control Product-Trapped in Seal |
| Product Characteristic | Tall Rigid Containers |
| Industry | Chemical Food & Beverage Pharma & Biotech |
| Max Product Height | 270 mm |
| Industry Segment | Bakery and Confectionary Beer, Wine and Other Alcoholic Beverages Bulk Chemicals Cosmetics Dairy Fine and Specialist Chemicals Food Additives Meat & Poultry & Seafood Nutraceuticals Oils and Fats Pet Food and Animal Feed Pharma Ready Meals Snack Foods Sugar Starch and Yeast Water and other Non-Alcoholic Beverages |
| X-ray Detector | Single Energy, HiGain Technology |
| Max Product Weight | 30 kg |
| X-ray Emissions | < 1uSv/hr |
| Max Line Speed | 140 m/min |
| Max Throughput | 1000 ppm |
| Diode Size | 0.8 mm |
Safeguarding Product Rejection
A range of optional reject mechanisms are available to ensure the quick, safe removal of your faulty products, with a low false reject rate.
Achieving Outstanding Detection
The X3730’s horizontal split beam technology increases detection sensitivity by imaging every package twice in one pass. As each package is inspected from two different angles, blind spots are minimized, thereby increasing the probability of detection.
Proving Due Diligence and Traceability
For QA purposes and to assist in Overall Equipment Effectiveness (OEE) you can retrieve inspection statistics and X-ray images through diverse connectivity options in real time.
5-Year Generator Warranty
Minimize your downtime and protect the most valuable and expensive part of your inspection system, the x-ray generator, for 5 years when you purchase it with a Standard or Comprehensive Care Package.
Global Service Support
A global network of service experts provide fast remote and on-site support. Our comprehensive service offering allows you to achieve regulatory compliance, high performance, and maximum uptime throughout the life cycle of your product inspection equipment.
Enhancing Production Data Visibility
Ensure the highest levels of regulatory compliance through real-time data collection. ProdX, our PC-based software, constantly monitors and fully documents all production parameters, quality incidents, user interactions and performance verification routines.
