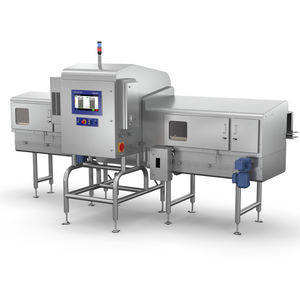

X37 Series – X3735

Achieving Optimum Inspection.The X3735 examines each product at two angles, thereby eliminating blind spots to ensure physical contamination detection and full integrity checks are completed at increased probability of detection (POD) levels.

Increasing Detection Sensitivity

The X3735's split beam increases the probability of detection of unwanted physical contaminants by imaging the product twice, thus minimizing blind spots.

Proving Due Diligence

All non-conforming products are removed from the production line and stored on a lockable reject table, accessible by authorized personnel only.

Enhancing OEE

Only authorized personnel can access statistics and inspection images, allowing for continual monitoring and reporting on manufacturing performance.

Material No.: 3054114700

Call for Quote
Specifications - X37 Series – X3735
IP Rating
IP65
IP69
Connectivity
Ethernet
OPC UA
USB
Inspection Solution
X-ray Inspection
Max Product Width
180 mm
HMI
15.6" Touchscreen
Packaging Type
Cardboard
Glass
Metal Cans
Metalized Film
Plastic
Cooling Method
Air Conditioner & Radiator Pump
Product Flow
Conveyor
X-ray Beams
Split beam
X-ray Generator
420 W, up to 84 kV, up to 5.0 mA Beryllium Tube
420 W, up to 84 kV, up to 5.0 mA Glass Tube
Inspection Application
Completeness Check
Contamination Detection
Fill level Check
Integrity Check
Mass Control
Product-Trapped in Seal
Product Characteristic
Tall Rigid Containers
Industry
Chemical
Food & Beverage
Pharma & Biotech
Max Product Height
330 mm
Industry Segment
Bakery and Confectionary
Beer, Wine and Other Alcoholic Beverages
Bulk Chemicals
Cosmetics
Dairy
Fine and Specialist Chemicals
Food Additives
Meat & Poultry & Seafood
Nutraceuticals
Oils and Fats
Pet Food and Animal Feed
Pharma
Ready Meals
Snack Foods
Sugar Starch and Yeast
Water and other Non-Alcoholic Beverages
X-ray Detector
Single Energy, HiGain Technology
Max Product Weight
30 kg
X-ray Emissions
< 1uSv/hr
Max Line Speed
100 m/min
Max Throughput
800 ppm
Diode Size
0.8 mm
Datasheets

Protecting Products at High Speeds

At line speeds of up to 800 ppm the X3735 can simultaneously inspect a product for physical contaminants and other integrity checks using our unique, proprietary x-ray software ContamPlusTM

Reaching Outstanding Detection Levels

Your brand reputation is maintained at all times, as our unique ContamPlusTM X-ray inspection algorithms optimize detection levels with each process.

Improving Inspection Results

Bespoke guide rails allow for smooth product changeovers and accurate presentation to the X3735 to facilitate accurate inspection results.

5-Year Generator Warranty

Minimize your downtime and protect the most valuable and expensive part of your inspection system, the x-ray generator, for 5 years when you purchase it with a Standard or Comprehensive Care Package.

Global Service Support

A global network of service experts provide fast remote and on-site support. Our comprehensive service offering allows you to achieve regulatory compliance, high performance, and maximum uptime throughout the life cycle of your product inspection equipment.

Enhancing Production Data Visibility

Ensure the highest levels of regulatory compliance through real-time data collection. ProdX, our PC-based software, constantly monitors and fully documents all production parameters, quality incidents, user interactions and performance verification routines.

Documentation

Datasheets

X3735 Datasheet | Free Download
The X3735 x-ray system is a high detection sensitivity solution, with an integrated conveyor designed to inspect tall, rigid packaged products in a wi...
