The X3750 provides class-leading inspection capabilities for food and pharmaceutical manufacturers utilizing glass containers.

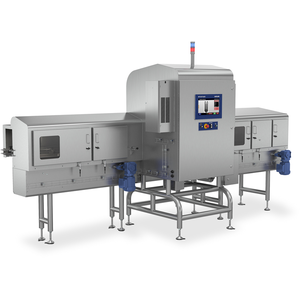

X37 Series – X3750
Reliable Glass-in-Glass Inspection.The X3750 performs the inspection of glass containers at high line speeds of up to 800 products per minute, ensuring outstanding detection sensitivity of physical contaminants in jars that are up to 130 mm in diameter.
Unrivaled Inspection Results
The X3750 offers optimum X-ray beam geometry, removing all inspection blind spots and resulting in unrivaled glass-in-glass inspection of jars.
Reaching Outstanding Detection Levels
Your brand reputation is maintained at all times, as our unique ContamPlusTM X-ray inspection algorithms optimize detection levels with each process.
Supporting Uptime
Adjustable full-length guide rails facilitate quick and easy product set-up and consistent product presentation to the X-ray system.
Material No.: 3054124800
Product Family:XRInspection00040019
Specifications - X37 Series – X3750
| IP Rating | IP65 IP69 |
| Connectivity | Ethernet OPC UA USB |
| Inspection Solution | X-ray Inspection |
| Max Product Width | 130 mm |
| HMI | 15.6" Touchscreen |
| Packaging Type | Bottle Glass |
| Cooling Method | Air Conditioner & Radiator Pump |
| Product Flow | Conveyor |
| X-ray Beams | Single horizontal beam |
| X-ray Generator | 420 W, up to 84 kV, up to 5.0 mA Glass Tube |
| Inspection Application | Completeness Check Contamination Detection Fill level Check Integrity Check Mass Control Product-Trapped in Seal |
| Product Characteristic | Tall Rigid Containers |
| Industry | Chemical Food & Beverage Pharma & Biotech |
| Max Product Height | 260 mm |
| Industry Segment | Bakery and Confectionary Beer, Wine and Other Alcoholic Beverages Bulk Chemicals Cosmetics Dairy Fine and Specialist Chemicals Food Additives Meat & Poultry & Seafood Nutraceuticals Oils and Fats Pet Food and Animal Feed Pharma Ready Meals Snack Foods Sugar Starch and Yeast Water and other Non-Alcoholic Beverages |
| X-ray Detector | Single Energy, HiGain Technology |
| Max Product Weight | 5 kg |
| X-ray Emissions | < 1uSv/hr |
| Max Line Speed | 100 m/min |
| Max Throughput | 800 ppm |
| Diode Size | 0.8 mm |
Protecting Products at High Speeds
The X3750 is capable of inspecting and rejecting up to 800 products per minute and can match your production speeds, ensuring manufacturing capabilities are maximized and faulty products are removed from production.
Upholding Brand Integrity
In addition to the detection of physical contamination, the X3750 can also inspect for accurate fill levels and perform a range of product quality checks to identify sub-standard products.
Proving Due Diligence
View windows and illuminated tunnels increase visibility throughout the system and aid reject set-up, thereby demonstrating due diligence.
Achieving Hygiene Compliance
The X3750 encompasses the highest level of hygienic design with IP65 as the standard and an upgrade option to IP69.
5-Year Generator Warranty
Minimize your downtime and protect the most valuable and expensive part of your inspection system, the x-ray generator, for 5 years when you purchase it with a Standard or Comprehensive Care Package.
Global Service Support
A global network of service experts provide fast remote and on-site support. Our comprehensive service offering allows you to achieve regulatory compliance, high performance, and maximum uptime throughout the life cycle of your product inspection equipment.
Enhancing Production Data Visibility
Ensure the highest levels of regulatory compliance through real-time data collection. ProdX, our PC-based software, constantly monitors and fully documents all production parameters, quality incidents, user interactions and performance verification routines.
