The X38 x-ray system is designed to inspect up to 14 tons of pumped food products per hour, typically liquids, slurries and pastes before further valu...

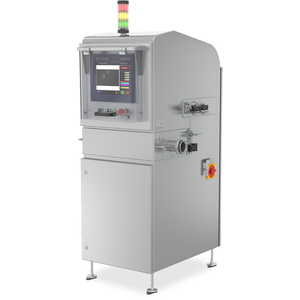

X38 Series Pipeline
Complete Safety for Pumped Products.The X38 is designed to inspect up to 14 ton of pumped products per hour, typically liquids, slurries and pastes, before further value is added to the product through processing and final packaging.
Offering Application Versatility
The X38 can inspect a wide range of pumped products in pipelines, such as ice cream, jam, yogurt, minced meat, poultry, etc.
Complying with Hygiene Standards
The class-leading hygienic design follows GMP, NFS and EHEDG principles, with IP69 as the standard and exceptional CIP (clean in place) features.
Safeguarding Products At High Speeds
The X38 can inspect up to 14 tons of pumped product per hour, and automatic calibration can be performed in less than 20 seconds, which maximizes uptime.
Material No.: 3054125100
Product Family:XRInspection00040022
Specifications - X38 Series Pipeline
| IP Rating | IP69 |
| Connectivity | Ethernet OPC UA USB |
| Inspection Solution | X-ray Inspection |
| Max Aperture Size | 100 mm |
| HMI | 15.6" Touchscreen |
| Packaging Type | Unpackaged |
| Cooling Method | Air Conditioner |
| Product Flow | Pipeline |
| X-ray Beams | Single vertical beam |
| X-ray Generator | 270 W, up to 60 kV, up to 4.5 mA Glass Tube |
| Inspection Application | Contamination Detection |
| Product Characteristic | Liquid/Paste/Slurry |
| Industry | Chemical Food & Beverage Pharma & Biotech |
| Industry Segment | Bakery and Confectionary Beer, Wine and Other Alcoholic Beverages Bulk Chemicals Cosmetics Dairy Fine and Specialist Chemicals Food Additives Meat & Poultry & Seafood Nutraceuticals Oils and Fats Pet Food and Animal Feed Pharma Ready Meals Snack Foods Sugar Starch and Yeast Water and other Non-Alcoholic Beverages |
| X-ray Detector | Single Energy, HiQiQ Technology |
| X-ray Emissions | < 1uSv/hr |
| Max Line Speed | 60 m/min |
| Max Throughput | 12700 kg/hr |
| Diode Size | 0.8 mm |
Meeting Production Line Needs
Available in three pipe sizes (2.5", 3” and 4”) as standard. Alternative pipe sizes are available to suit individual applications.
Minimizing Product Waste
A range of fully integrated, high-speed reject valves are available, including a three-way ball valve. All valves can be synchronized to the pump, minimizing rejected portions and protecting profits.
Proving Due Diligence and Traceability
Multiple interfacing and connectivity capabilities allow the X38 to be integrated with both up-and-down stream production equipment to allow for optimum inspection.
Maximizing Uptime with a Hygienic Design
Hygienic design innovations allow for easy access to all machine areas, with no hidden bug traps, ensuring maximum uptime. IP69 comes as standard for harsh wash-down environments.
5-Year Generator Warranty
Minimize your downtime and protect the most valuable and expensive part of your inspection system, the x-ray generator, for 5 years when you purchase it with a Standard or Comprehensive Care Package.
Global Service Support
A global network of service experts provide fast remote and on-site support. Our comprehensive service offering allows you to achieve regulatory compliance, high performance, and maximum uptime throughout the life cycle of your product inspection equipment.
Enhancing Production Data Visibility
Ensure the highest levels of regulatory compliance through real-time data collection. ProdX, our PC-based software, constantly monitors and fully documents all production parameters, quality incidents, user interactions and performance verification routines.
