The X39 x-ray system is specifically designed for the inspection of unpackaged, frozen-formed products.

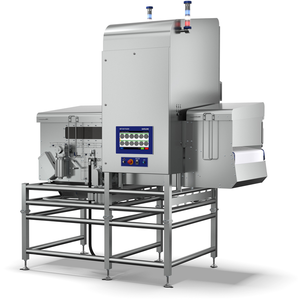

X39 Series Loose Flow
Inspection of Frozen-formed Products.The X39 X-ray system is specifically designed for the inspection of unpackaged frozen-formed products to ensure your products are free from physical contaminants and product defects.
Reaching Outstanding Detection Levels
Simultaneously detects and rejects physical contaminants in frozen-formed products using our proprietary X-ray software ContamPlusTM.
Exceeding Hygiene Requirements
IP69 design ensures the demands of harsh environments are met using type 316 stainless steel for all key product contact areas, including the reject flap.
Minimizing Product Waste
The X39 performs accurate inspections at up to 57 meters per minute, even when the product positioning on the belt varies, thereby maximizing uptime and reducing waste.
Material No.: 3054125200
Product Family:XRInspection00040023
Specifications - X39 Series Loose Flow
| IP Rating | IP69 |
| Connectivity | Ethernet OPC UA USB |
| Inspection Solution | X-ray Inspection |
| Max Product Width | 580 mm |
| HMI | 15.6" Touchscreen |
| Packaging Type | Unpackaged |
| Cooling Method | Heat exchanger and radiator pump |
| Product Flow | Conveyor |
| X-ray Beams | Single vertical beam |
| X-ray Generator | 420 W, up to 84 kV, up to 5.0 mA Beryllium Tube |
| Inspection Application | Completeness Check Contamination Detection Integrity Check Mass Control |
| Product Characteristic | Deep Frozen Open |
| Industry | Chemical Food & Beverage Pharma & Biotech |
| Max Product Height | 40 mm |
| Industry Segment | Bakery and Confectionary Beer, Wine and Other Alcoholic Beverages Bulk Chemicals Cosmetics Dairy Fine and Specialist Chemicals Food Additives Meat & Poultry & Seafood Nutraceuticals Oils and Fats Pet Food and Animal Feed Pharma Ready Meals Snack Foods Sugar Starch and Yeast Water and other Non-Alcoholic Beverages |
| X-ray Detector | Single Energy, HiGain Technology |
| Max Product Weight | 30 kg |
| X-ray Emissions | < 1uSv/hr |
| Max Line Speed | 60 m/min |
| Max Throughput | 1800 ppm |
| Diode Size | 0.8 mm |
Upholding Brand Integrity
The X39 simultaneously inspects products for mass, dents, holes, edge defects, flakes and product length, width and height, ensuring only those products that conform to standards are accepted before continuing the process.
Protecting Profits
A dual reject system, encompassing a fully integrated multi-air nozzle reject system and scoop device, minimizes product waste and saves costs.
Safeguarding Products At High Speeds
The X39 can inspect up to 1,800 products per minute, maintaining a high throughput rate without restriction from other equipment upstream/ downstream.
Maximizing Uptime
Advanced intuitive software monitors all aspects of the X39; warnings are issued if the laser or reject nozzles lose accuracy, ensuring a continual flow of high quality product throughout the production process.
5-Year Generator Warranty
Minimize your downtime and protect the most valuable and expensive part of your inspection system, the x-ray generator, for 5 years when you purchase it with a Standard or Comprehensive Care Package.
Global Service Support
A global network of service experts provide fast remote and on-site support. Our comprehensive service offering allows you to achieve regulatory compliance, high performance, and maximum uptime throughout the life cycle of your product inspection equipment.
Enhancing Production Data Visibility
Ensure the highest levels of regulatory compliance through real-time data collection. ProdX, our PC-based software, constantly monitors and fully documents all production parameters, quality incidents, user interactions and performance verification routines.
