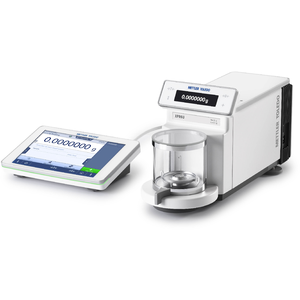

Comparator XPR10U

Name: Comparator XPR10U
Brand: Mettler Toledo

Comparator & Higher Performance Balance.It comes with 10.1 g capacity and 0.0001 mg readability. The main benefits are: Highly accurate Mass Determination, Minimized Weighing Errors, Secure Data Transfer and highly ergonomic Operation.

Accurate Mass Determination

METTLER TOLEDO mass comparators and higher performance balances guarantee top measurement performance and full traceability of weighing results.

Minimized Weighing Errors

Error-free operation through user guidance on the color touchscreen for a smooth and hands-free process.

Secure Data Transfer

The integrated USB and Ethernet interfaces make it easy and reliable to transfer data to peripheral devices or a network.

Material No.: 30756546

Call for Quote

Overview
Documentation
Accessories
More Information
More Information
Consumables
Software

Specifications - Comparator XPR10U

Maximum Capacity	10.1 g
Readability	0.1 µg
Repeatability ABA at Nominal Load	0.5 µg
Repeatability ABA at Low Load	0.4 µg
Minimum Weight (USP, 0.1%, typical)	0.6 mg
Adjustment	Internal (automatic/FACT)
Interfaces	Bluetooth (optional) Ethernet (LAN) RS232 (integrated/optional) USB-A (to device) USB-B (to device)
User management	Password protection Unlimited Amount of Users User Rights
Legal for Trade	No
Electrical Weighing Range	0 g – 10.1 g
Repeatability nominal load	0.6 µg
Repeatability (Low Load) (5%)	0.4 µg
OIML Class	E1 E2 F1 F2 M1 M2 M3
Gravimetric eccentricity elimination	Included
Software	Optional MC Link 2 Mass Calibration Software
Weight	5.3 kg
Weight Handler	None
Valuable Samples	Yes
Compliance Options	Data Integrity Log history (21 CFR Part 11 Compliant) Log history (Basic Metadata) Password protection
Balance Line	XPR
Repeatability, typical	0.3 µg
Balance Type	Microbalance
Documentation Options	Automatic Documentation (21 CFR Part 11 Compliant) Basic Electronic Documentation Printing
Price	$$$
Microbalance Type	Ultra-Microbalance
Family	Excellence
21 CFR Part 11 Compliant Weighing	Yes
Draftshield	Automated
Automation Options	Automated Workflows

One-Click Certificate

The optional MC Link calibration software automatically stores all your weight calibration and other metrological relevant data in a secure database. Regulatory compliant calibration certificates are issued with one click.

Latest Technology

The large touchscreen terminal with built-in user guidance minimizes errors. Built-in intelligence, e.g. status light, which intuitively indicates the instrument status.

Highly Ergonomic Operation

The user interface guarantees efficient and intuitive operation. The touchscreen allows a fast and error-free operation even with gloves.

Simplify repetitive tasks

Simply store task methods in your own method library, also suitable for methods including several samples or test series.

Direct data transfer

Easily transfer task parameters and results to a PC or software application via USB or directly without need for additional software
