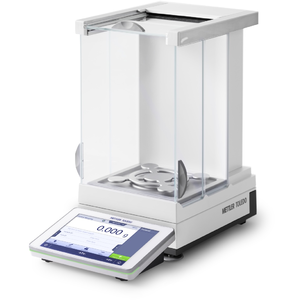

Comparator XPR2003SC
Comparator & Higher Performance Balance.It comes with 2,300 g capacity and 1 mg readability. The main benefits are: Highly accurate Mass Determination, Minimized Weighing Errors, Secure Data Transfer and highly ergonomic Operation.
Accurate Mass Determination
METTLER TOLEDO mass comparators and higher performance balances guarantee top measurement performance and full traceability of weighing results.
Minimized Weighing Errors
Error-free operation through user guidance on the color touchscreen for a smooth and hands-free process.
Secure Data Transfer
The integrated USB and Ethernet interfaces make it easy and reliable to transfer data to peripheral devices or a network.
Material No.: 30317627
Available for purchase
Product Family:precision00040029
Specifications - Comparator XPR2003SC
| Maximum Capacity | 2.3 kg |
| Readability | 1 mg |
| Repeatability ABA at Nominal Load | 0.8 mg |
| Repeatability ABA at Low Load | 0.6 mg |
| Settling Time | 3.5 s |
| Minimum Weight (USP, 0.1%, typical) | 1.4 g |
| Adjustment | Internal (automatic/FACT) |
| Interfaces | Bluetooth (optional) Ethernet (LAN) RS232 (integrated/optional) USB-A (to device) USB-B (to device) |
| Display | 7" colour TFT touchscreen |
| User management | Password protection Unlimited Amount of Users User Rights |
| Legal for Trade | No |
| Weighing Pan Size ( DxW) or Diameter | 127.00 mm x 127.00 mm |
| Repeatability nominal load | 1 mg |
| OIML Class | F1 F2 M1 M2 M3 |
| Software | Optional MC Link 2 Mass Calibration Software |
| Weight Handler | None |
| Terminal size | 7 inch |
| Compliance Options | Data Integrity Log history (21 CFR Part 11 Compliant) Log history (Basic Metadata) Password protection |
| Weighing Pan Dimensions | 127 mm |
| Balance Line | XPR |
| Repeatability, typical | 0.7 mg |
| Balance Type | Precision Balance |
| Battery operation | No |
| Preferred model | Top Performance |
| Documentation Options | Automatic Documentation (21 CFR Part 11 Compliant) Basic Electronic Documentation Printing |
| User management / Audit Trail | Yes |
| Price | $$$ |
| Linearity | 2 mg |
| Family | Excellence |
| 21 CFR Part 11 Compliant Weighing | Yes |
| Draftshield | Manual |
One-Click Certificate
The optional MC Link calibration software automatically stores all your weight calibration and other metrological relevant data in a secure database. Regulatory compliant calibration certificates are issued with one click.
Latest Technology
The large touchscreen terminal with built-in user guidance minimizes errors. Built-in intelligence, e.g. status light, which intuitively indicates the instrument status.
Highly Ergonomic Operation
The user interface guarantees efficient, intuitive operation. The touchscreen allows a fast and error-free operation even with gloves.
