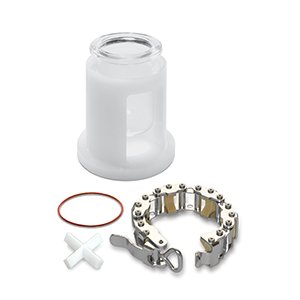

100 mL Two-Piece Glass Reactor Set
For EasyMax 102 Reactor Systems
Chemical and process development tend to use small reactors due to constraints of material availability, cost and waste recycling. Because Reactor Systems enable precise experimentation, detailed and accurate data for process development can be obtained at the 50 to 100 mL scale.
Small glass vessels are the most commonly used reactors for research and development in the chemical and pharmaceutical industries. The 100 mL sized two-piece reactor is designed not just to hold temperature probes and pH, but also process analytical probes, such as FTIR spectroscopy or particle size characterization. By adding the calorimetry module, HFCal experiments can be carried out in the 100 mL vessel to provide heat data representing the power of a reaction, indicating non-scaleable issues.
The 100 mL two-piece glass reactor fits with:
- EasyMax 102 Basic
- EasyMax 102 Basic Plus
- EasyMax 102 Advanced
Specifications - 100 mL Two-Piece Glass Reactor Set
| Material Number(s) | 51161708 |
| Glass Reactor | Vmin: 30 mL Vnom: 100 mL Vmax: 150 mL |
| Bottom Drain Valve | No |
| Temperature Range | -40 °C to 180 °C |
| Pressure Range | Vacuum to Ambient |
| Suitable for Calorimetry | Yes |
| Designed for | EasyMax 102 |
| Cover | Glass or PTFE Cover set (not included, see Accessories) |
| Material | Borosilicate Glass |
| Stirring | Magnetic (stir bar 15 x 38 mm included) Overhead Stirrer (not included |
| Additional Accessories Included | Reactor Stand for 100 mL Reactor Reactor Clamp O-ring |
