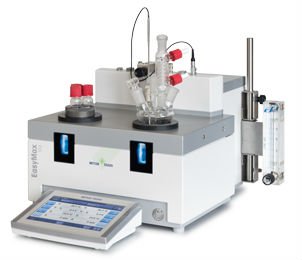

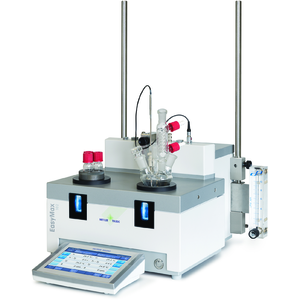

EasyMax 102 Basic Thermostat System

Name: EasyMax 102 Basic Thermostat System
Brand: Mettler Toledo

The Personal Synthesis Workstation.EasyMax 102 Basic Synthesis Workstation for the Organic Chemist

For Organic Chemists

The personal workstation allows chemists to create new molecules and to develop new synthetic routes in a flexible and easy way.

Variety of Working Volumes

The EasyMax 102 can be used with one- and two-piece glass reactors or multiple reaction vials supporting working volumes from 1 to 100 mL.

Wide Temperature Range

The EasyMax 102 enables experiments in a temperature range from -40 to 180 °C without the use of cumbersome oil and ice baths, or bulky cryostats.

Material No.: 30133676

Call for Quote

Overview
Documentation
Accessories
More Information
Related Products
Consumables
Software

Specifications - EasyMax 102 Basic Thermostat System

Temperature Range	-40 °C – 180 °C
Operating Volume	1 mL – 100 mL
Material	Powder-coated stainless steel with FEP coated cover plate
Dimensions (HxWxD)	28 cm x 33 cm x 36 cm
Back / Front light	Yes/No
Weight	16 kg
Power Requirements	100 – 240 VAC, 50/60Hz
Heating / Cooling	Solid State Thermostat
Temperature Modes	Jacket control, reaction mixture control, distillation control, crystallization control

Best User Experience

EasyMax is operated via an easy-to-use touchscreen to change reaction parameters at the touch of a button.

High Quality Experiments

The EasyMax 102 Basic allows precise reaction parameter control. This enables high-quality, representative experiments, leading to more and better knowledge per experiment.

Broad Application Range and Flexibility

The EasyMax 102 Basic lets you control a broad range of reaction parameters such as temperature, stirring speed, or reagent addition with high precision.

View More EasyMax Models

Documentation

Datasheets

EasyMax Basic Datasheet (102, 102 LT, 402)

Synthesize more new compounds, eliminate non-viable candidates earlier and perform reaction optimization at volumes from 0.5 mL to 400 mL.

Product Brochures

Chemical Synthesis Reactors Product Catalog

View the full catalog of chemical synthesis reactors, workstations, and accessories. Find what you need for your lab!

EasyMax Upgrade Brochure (pdf)

Researchers can choose between different versions of the EasyMax or upgrade existing synthesis workstations to bring expanded control and smart data m...

Software

iC Data Center

iC Data Center is a powerful tool that improves productivity for the researcher while facilitating knowledge management for the organization.

iControl

Comprehend the chemical reaction in detail. Draw the right conclusions from each experiment by combining reactor data.

iC Safety

iC Safety software is designed to speed up and simplify the calculations of thermal safety parameters associated with complex chemical reactions criti...

Extended Product Information

EasyMax 102 User Manual (pdf)

EasyMax Pre-Installation Guide

This document outlines the site requirements for a successful installation of the EasyMax® system and provides information about technical data, cons...

EasyMax 102 Operating Instructions

Step-by-step instructions and helpful tips to get the most out of your EasyMax 102 Synthesis Workstation. From setup to troubleshooting, we've got you...

EasyMax Service Solutions

METTLER TOLEDO provides a range of value-added service options to help ensure instrument uptime, provide quality results, and ensure regulatory compli...
