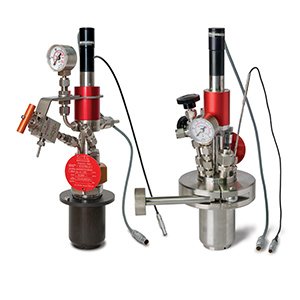

Pressure Reactors
Run Reactions Under Pressure
Many applications, including hydrogenations, chlorinations, and hydroformylations, require elevated operating pressure.
The use of a pressure controller or gas uptake set permits measuring and/or controlling the relevant parameters.
These pressure reactor sets contain all required parts to run pressure reactions and can be used with:
- EasyMax 102 Basic
- EasyMax 102 Basic Plus
- EasyMax 102 Advanced
- See more chemical synthesis reactors
| Model | EasyMax 100 mL Pressure Reactor Set EM20-100-HC | EasyMax 100 mL Pressure Reactor Set EM60-100-HC |
| Volume | Vmin: 25 mL Vmax: 100 mL | Vmin: 25 mL Vmax: 100 mL |
| Bottom Drain Valve | No | No |
| Temperature Range | -20 °C to 180 °C | -20 °C to 180 °C |
| Pressure Range | Vacuum to 20 bar | Vacuum to 20 bar |
| Rupture Disc | 25 bar | 65 bar |
| Material | C-22 (all parts in contact with reaction mass) C-276 (rupture disk, IR port) Stainless stell (Swagelok fittings, pressure gauge) | C-22 (all parts in contact with reaction mass) C-276 (rupture disk, IR port) Stainless stell (Swagelok fittings, pressure gauge) |
| Stirrer Included | Gassing stirrer, 30 mm | Gassing stirrer, 30 mm |
| Additional Accessories Included | Stirrer motor Rupture disk Pressure gauge Tr-probe | Stirrer motor Rupture disk Pressure gauge Tr-probe |
| Material Number | 30030945 | 30030946 |
Specifications - Pressure Reactors
| Material Number(s) | 30030945, 30030946 |
