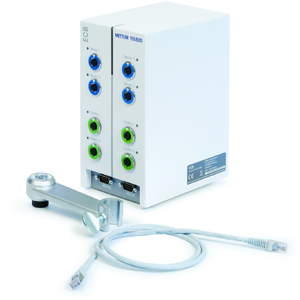

Easy Control Box (ECB)

Name: Easy Control Box (ECB)
Brand: Mettler Toledo

Connect any Sensor and Pump.The ECB extends EasyMax, OptiMax and RX-10 reactor systems with automated control of dosings and capabilities to capture data from 3rd party sensors.

Dosing Control Capabilities

Connect easily and quickly commercially available pumps and balances to the ECB for automated pre-programmed gravimetric or volumetric dosing.

Plug& Play with SmartConnect Technology

Sensors and control elements are automatically recognized when connecting to the ECB making the configuration of the reactor systems a breeze.

Capture and Store Sensor data

Automated data capture, storage and report generation enable instantaneous experiment evaluation and comparison to take better decisions faster.

Material No.: 30212440

▲Chemical Synthesis Reactors

Call for Quote

Overview
Documentation
Accessories
More Information
More Information
Consumables
Software

Connect pumps and balances for safe controlled gravimetric dosing - Connect commercially-available pumps and balances to the ECB for automated pre-programmed gravimetric dosing. Linking temperature with dosing control enables reagent addition to stop in dangerous exothermic situations. Experiments can truly run unattended, allowing more experiments to be performed under safe conditions.
SmartConnect technology for smarter experiments - SmartConnect™ makes connections with existing analog sensors truly plug-and-play. The sensor calibration and configuration data are stored on an integrated chip ensuring measurements are always performed accurately and precisely applying the current sensor calibration data.
Capture and store sensor data along with all process parameters - Data from any analog sensor, such as mass flow, pressure, temperature or turbidity are captured and stored in the experiment file together with other key process parameters. Additional sensor data leads to more knowledge about the reaction and better decisions to speed process development.
When pH control becomes important - Measuring and controlling pH precisely is essential for numerous applications. The plug-and-play pH module enhances the capabilities of the ECB significantly, enabling pH measurement and control from 50 mL up to multiple liters.

Easy Control Box (ECB) Introduction

Connect any sensor and pump to automated laboratory reactors.

Automate Gravimetric Dosing

ECB offers the flexibility to control a wide range of pumps and balances effectively, extending the capability of dosing liquids by mass.

Temperature-Controlled Dosing

Temperature control and monitoring is imperative for accurately predicting the scale-up of chemical processes.

Specifications - Easy Control Box (ECB)

Weight	2.5 kg
Inputs	-10 to +10 V Pt100 0-20 mA 4-20 mA
Outputs	0-20 mA PWM 4-20 mA Frequency 0–10V TTL
pH	With SevenExcellence pH/mV expansion unit
Ports	4 x inputs 2 x RS232 for balances 4 x. outputs
Dimensions (LxHxW)	110 mm x 215 mm x 152 mm (110 mm x 215 mm x 152 mm)

User-Friendly, Automated and Data Management

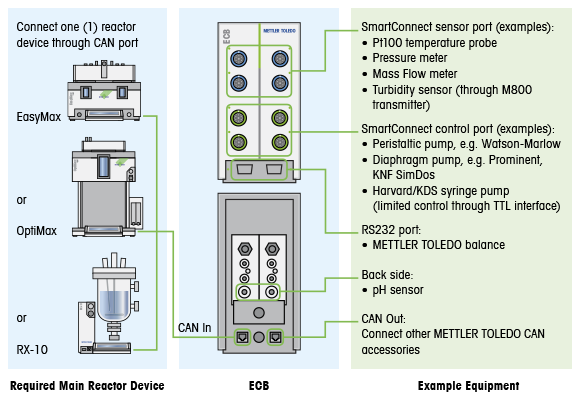

Thanks to the plug-and-play capability, the ECB can be integrated with METTLER TOLEDO Reactor Systems for Chemical Synthesis or the RX-10 Reactor Control unit and extends the range of applications. Various SmartConnect cables are available to connect analog laboratory devices, sensors or pumps to the ECB. Experiment control is simple and carried out from a state-of-art touchscreen or the PC iControl Software. Experimental data, configuration and events are consistently recorded throughout the entire experiment ready to be reviewed any time during or after the experiment. Secure data capturing ensures that no information gets lost and no experiments are wasted.

Documentation

Datasheets

ECB: Easy Control Box

ECB is a sensor and control box that connects to touchscreen-based reactor systems to make real-time measurements and controlled dosing available to n...

Software

iControl

Comprehend the chemical reaction in detail. Draw the right conclusions from each experiment by combining reactor data.

iC Data Center

iC Data Center is a powerful tool that improves productivity for the researcher while facilitating knowledge management for the organization.

White Papers

Safe, Unattended Dosing in Chemical Development & Scale-up

Grünenthal Process R&D safely automates dosing and runs highly exothermic reactions unattended to increase productivity without additional staff.

Extended Product Information

Easy Control Box (ECB) User Manual (pdf)

SmartConnect Cables User Manual (pdf)
