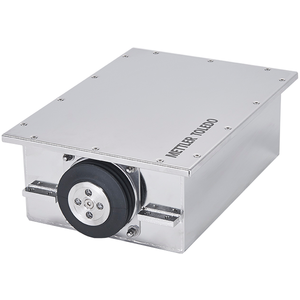

Smart Load-Cell Technology
The load cell, with Monobloc technology, is at the core of the SLF6-Series load cells and guarantees the highest precision and reliability.
Direct Connectivity
SLF6-Series load cells can be easily connected to popular fieldbus systems, allowing you to standardize communication with most widely used PLCs.
High Resolution
With capacities of 15, 32 and 64 kilograms, SLF6-Series load cells are suitable for many applications and industries.
Material No.: 30263713
Maximum Capacity | 32.2 kg |
Readability | 0.05 g |
Repeatability (sd) @ nominal load | 0.05 g |
Interfaces | RS232 RS422 |
Protection Rating | IP66 IP68 |
Dimensions (LxHxW) | 261 mm x 78 mm x 182.5 mm |
Product Line | SLF6 |
Internal Adjustment | Yes |
Internal Electronics | Yes |
Maximum Preload | 5.8 kg |
Legal for Trade | No |
Washdown | No |
Power Supply | 10 to 30 V DC |
Interface Update Rate (Max) | 92 Hz |
