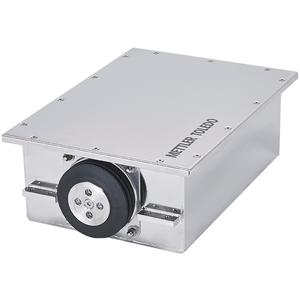

High Precision Weigh Module SLF630x
High Precision Load Cells.With capacities from 6 to 60 kilograms, SLF6-Series load cells are suitable for a variety of applications and industries.
High Resolution
With a resolution of up to 750,000 points, it is possible to measure even the tiniest change in the final weight.
Direct Connectivity
SLF6-Series load cells can easily be connected to popular fieldbus systems, allowing standardized communication with the most widely used PLCs.
Hazardous Environments
SLF6-Series load cells are approved for use in Category 2 hazardous areas, allowing top performance in gaseous and dusty environments.
Material No.: 30373368
Product Family:industrial-weighing-solutions-high-precision-weigh-sensors00070010
Specifications - High Precision Weigh Module SLF630x
| Maximum Capacity | 32.2 kg |
| Readability | 0.05 g |
| Repeatability (sd) @ nominal load | 0.05 g |
| Interfaces | RS232 RS422 |
| Protection Rating | IP66 IP68 |
| Dimensions (LxHxW) | 261 mm x 78 mm x 198.2 mm |
| Product Line | SLF6 |
| Internal Adjustment | Yes |
| Internal Electronics | Yes |
| Maximum Preload | 5.8 kg |
| Legal for Trade | No |
| Washdown | No |
| Power Supply | 10 to 30 V DC |
| Interface Update Rate (Max) | 92 Hz |
| Hazardous Approval | ATEX: II 2 D Ex ib IIIC T55 °C Db ATEX: II 2 G Ex ib IIC T4 Gb IECEx: Ex ib IIC T4 Gb IECEx: Ex ib IIIC T55 °C Db |
Resistant
Rated IP66 and IP68, the load cell is well-sealed and can be cleaned using high-pressure water jets. This makes it easy to clean and saves maintenance time.
Minimize Downtime
An internal pin protects the load cell against overload forces. This extends the product's life and minimizes downtime.
Easy Calibration
The internal adjustment weight facilitates calibration, as no external reference weight is needed.
Reliable Weight Results
The load cell can be programmed to automatically activate internal adjustment, based on changes in ambient temperature. This ensures reliable weighing results at all times.
