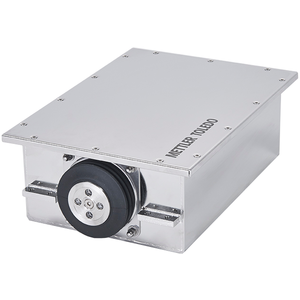

High Precision Weigh Module SLF6600xx
High Precision Load Cells.With capacities from 6 to 60 kilograms, SLF6-Series load cells are suitable for a variety of applications and industries.
High Resolution
With a resolution of up to 750`000 points, it is possible to measure even the tiniest change in the final weight.
Direct Connectivity
SLF6-Series load cells can easily be connected to popular fieldbus systems allowing to standardize the communication with the most widely used PLCs.
Hazardous Environments
SLF6-Series load cells are approved for use in hazardous areas for Category 3 for top performance in gaseous and dusty environments.
Material No.: 30364216
Product Family:industrial-weighing-solutions-high-precision-weigh-sensors00070014
Specifications - High Precision Weigh Module SLF6600xx
| Maximum Capacity | 64.2 kg |
| Readability | 0.1 g |
| Repeatability (sd) @ nominal load | 0.1 g |
| Interfaces | RS232 RS422 |
| Protection Rating | IP66 IP68 |
| Dimensions (LxHxW) | 261 mm x 78 mm x 198.2 mm |
| Product Line | SLF6 |
| Internal Adjustment | Yes |
| Internal Electronics | Yes |
| Maximum Preload | 10.8 kg |
| Legal for Trade | No |
| Washdown | No |
| Power Supply | 10 to 30 V DC |
| Interface Update Rate (Max) | 92 Hz |
| Hazardous Approval | ATEX: II 3D Ex tc IIIC T60°C Dc ATEX: II 3G Ex nA IIC T6 Gc IECEx: Ex nA IIC T6 Gc IECEx: Ex tc IIIC T60°C Dc |
Resistant
With the IP ratings of IP66 and IP68, load cell is sealed very well and can be cleaned with high pressure water jets. This makes the load cell easily cleanable, and saves time for maintenance.
Minimize Downtime
Internal pin protects the load cell against overload forces and prevents failure due to accidents or mishandling. Product life can thus be extended and unexpected downtimes minimized.
Easy Calibration
Internal adjustment weight facilitates calibration since there is no need to bring an external reference weight for this purpose. This can reduce the time needed for service and maintenance.
Reliable Weight Results
Load cell can be programmed to activate internal adjustment automatically based on changes in the ambient temperature, hence reliability of weight results can be guaranteed at all times.
