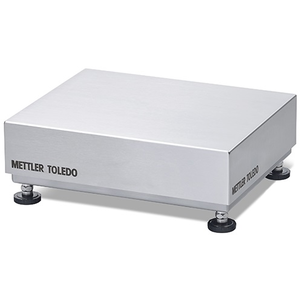

Model PBK989-AB30
Unprecedented Accuracy.High Precision Bench Scale
High Precision Weighing
The outstanding metrology is a result of the load cell with integrated Monobloc technology and of a high precision mechanical design.
Reliable In Harsh Conditions
The robust design of the platform body ensures reliable measurements at the highest precision.
Fast Weighing Processes
Industry-leading stabilization time and up to 92 updates per second make the platform suitable for high-speed weighing processes.
Material No.: 22201133
Product Family:platform-scale00080006
Specifications - Model PBK989-AB30
| Maximum Capacity | 60 lb (30 kg) |
| Platform Type | Bench Platforms |
| Material | Stainless Steel V2A (AISI 304) |
| Protection Rating | IP66 IP68 |
| Scale Interface | IDNet SICSpro |
| Platform Size (LxHxW) | 14 in x 5.2 in x 11 in (350 mm x 132 mm x 280 mm) |
| Repeatability (sd) | 0.00004 lb (0.02 g) |
| Hazardous Approval | Optional IECEX Gb/Db or Gc/Dc ATEX Cat. 2GD or Cat. 3GD FM Class I, II, III/Div 1 or Div 2 other local approvals |
| Readability (Certified) | 0.002 lb (1 g) |
| Readability | 0.0001 lb (0.05 g) |
| Repeatability | 0.0001 lb |
| Repeatability, typical | 0.02 g |
| Repeatability, (typical) | 0.00004 lb |
| Readability (Certified) Standard | 1 g 2 g 5 g |
| Environment | Wet & Harsh Wet (≥IP66) |
| Dimensions/Platform Size | </=400 mm from 6.3" to 15.7" |
| Legal for Trade | NTEP OIML |
| Hazardous Area | Non-hazardous area Zone 1/21 Zone 2/22 Division 2 Division 1 |
| Hygienic Design | Yes |
