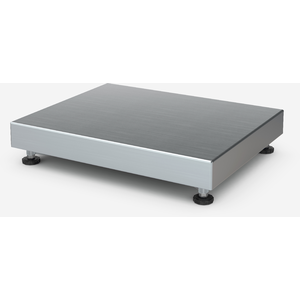

Weighing Platform PBA439-BC150
Built for Wet and Humid Environments.The PBA439 stainless steel platform is a robust, durable and economical solution for a wide range of weighing tasks with heavy washdown requirements.
Accuracy Protection
Optimally placed and independently adjusted overload stops ensure the best possible protection against load cell damage.
High Durability
The electropolished, fully stainless steel construction is designed to withstand harsh environments to ensure equipment reliability and longevity.
Hazardous Area Approved
The PBA439 platform series is also available with global EX approvals for use in Zone 1/21, Div. 1 and Zone 2/22, Div. 2 hazardous environments.
Material No.: 3059820610
Product Family:platform-scale00080114
Specifications - Weighing Platform PBA439-BC150
| Maximum Capacity | 250 lb (150 kg) |
| Readability | 0.02 lb (10 g) |
| Material | Stainless Steel V2A (AISI 304) |
| Protection Rating | IP69k IP68 |
| Scale Interface | Analog |
| Platform Size (LxHxW) | 25.59 in x 4.2 in x 19.69 in (650 mm x 106.8 mm x 500 mm) |
| Repeatability, typical | 3.2 g |
| Repeatability, (typical) | 0.0071 lb |
| Repeatability (sd) | 0.0071 lb (3.2 g) |
| Readability (Certified) | 0.05 lb (50 g) |
| Repeatability | 0.02 lb |
| Hazardous Approval | Zone 1/21 Zone 2/22 Non-Hazardous Area Division 2 Division 1 |
| Cable | 8.2 ft (2.5 m) |
| Environment | Wet & Harsh Wet (≥IP66) |
| Dimensions/Platform Size | from 19.8" to 31.5" from 501 to 800 mm |
| Legal for Trade | NTEP OIML |
| Hazardous Area | Non-hazardous area Zone 1/21 Zone 2/22 Division 2 Division 1 |
| Hygienic Design | Yes |
| Platform Type | Bench Platforms |
Hermetically Sealed Load Cell
The scale not only withstands steam and high-pressure washdowns, but also provides the highest reliability under the influence of moisture.
Hygienic Design
The open, sturdy frame design provides easy access to all parts of the construction to improve cleaning efficiency and eliminate contamination risk.
Precise Leveling
The fixed mounting plate offers a leveling bubble to help operators determine the optimal positioning for accurate weighing results, and easily adjustable feet allow for quick and precise leveling execution.
Complete Industrial Scale Solution
METTLER TOLEDO offers multiple industrial weighing solutions that combine a stand-alone weighing platform with a weighing scale indicator for rugged, accurate and reliable scales and load-cell systems in tough industrial environments.
Traceability with Reliable Printers
METTLER TOLEDO industrial printers and peripherals reliably document your weighing and process data with ease. Optimize your printer and peripherals with METTLER TOLEDO software for designing labels and storing custom templates.
Data Management Software
Managing the data from your weighing systems is important for maintaining an efficient production process. Our data collection and monitoring solutions help control the operation of your scale terminals as well as track information generated by them.
Benefit from Our Weighing Know-How
Our free GWP® Recommendation ensures you have the right scale for your weighing process. With years of weighing expertise, we can support you with scale selection, installation, cleaning, routine testing, calibration and maintenance.
