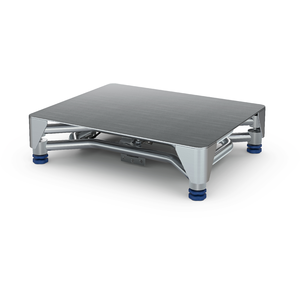

Weighing Platform PBA639-A6
Cleaning and Compliance Made Easy.The PBA639 stainless-steel weighing platform strictly adheres to hygienic design guidelines, facilitates quick and easy cleaning and meets higher accuracy standards to optimize processes and reduce costs in regulated hygienic environments.
No Cavities or Crevices
The elimination of open threads, cavities and dead spots helps to prevent contamination by giving bacteria nowhere to hide.
Hazardous Area Approved
The PBA639 platform series is also available with global Ex approvals for use in Zone 1/21, Div. 1 and Zone 2/22, Div. 2 hazardous environments.
Fully Protected Load Cell
This stainless-steel, hermetically sealed load cell withstands harsh and wet environments with IP68 and IP69k protection.
Material No.: 3066464902
| Maximum Capacity | 10 lb (3 kg/6 kg) |
| Readability | 0.0005 lb (0.2 g) |
| Material | Stainless Steel V2A (AISI 304) |
| Protection Rating | IP69k IP68 |
| Scale Interface | Analog |
| Platform Size (LxHxW) | 11.81 in x 4.33 in x 9.45 in (300 mm x 110 mm x 240 mm) |
| Repeatability, typical | 0.04 g |
| Repeatability, (typical) | 0.0001 lb |
| Repeatability (sd) | 0.0001 lb (0.04 g) |
| Readability (Certified) | 0.002 lb (1 g 2 g) |
| Repeatability | 0.0005 lb |
| Hazardous Approval | Zone 1/21 Zone 2/22 Non-Hazardous Area Division 2 Division 1 |
| Cable | 8.2 ft (2.5 m) |
| Environment | Wet & Harsh Wet (≥IP66) |
| Dimensions/Platform Size | </=400 mm from 6.3" to 15.7" |
| Legal for Trade | NTEP OIML |
| Hazardous Area | Non-hazardous area Zone 1/21 Zone 2/22 Division 2 Division 1 |
| Hygienic Design | Yes |
| Platform Type | Bench Platforms |
Open Frame Design
An open stainless-steel design with rounded edges and minimal flat surfaces allows effective cleaning to achieve higher hygienic standards.
Unique Impact Protection
Optimally placed and independently adjusted overload stops and additional side-impact protection maintain your load cell's accuracy and the efficiency of your processes in rough industrial environments.
Simplified Leveling
The platform enables easy set-up and tool-less leveling, so operators can move the scale for cleaning and quickly place it back to continue working without excessive downtime.
Complete Industrial Scale Solution
METTLER TOLEDO offers multiple industrial weighing solutions that combine a stand-alone weighing platform with a weighing scale indicator for rugged, accurate and reliable scales and load-cell systems in tough industrial environments.
Traceability with Reliable Printers
METTLER TOLEDO industrial printers and peripherals reliably document your weighing and process data with ease. Optimize your printer and peripherals with METTLER TOLEDO software for designing labels and storing custom templates.
Data Management Software
Managing the data from your weighing systems is important for maintaining an efficient production process. Our data collection and monitoring solutions help control the operation of your scale terminals as well as track information generated by them.
Benefit from Our Weighing Know-How
Our free GWP® Recommendation ensures you have the right scale for your weighing process. With years of weighing expertise, we can support you with scale selection, installation, cleaning, routine testing, calibration and maintenance.
