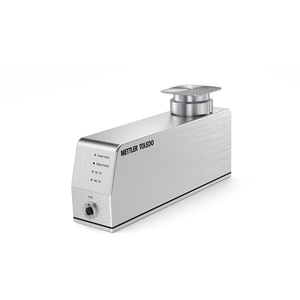

Weigh module SPE403-C
The Standard for Automation Precision.The SPE weigh modules combine a fortified design with high-precision weighing performance and convenient modularity.
Reliable Long-Term Operation
The durable design and high overload protection in all directions protect the weigh module during installation and operation.
As Flexible as Your Machine Design
High modularity reduces procurement and stock-keeping complexity. Select the optimal configuration and accessories for your different needs.
Optimized Machine Throughput
Maximize throughput in high-speed applications with our fast update rate and impressive settling time for direct feedback loops.
Material No.: 30823971
Product Family:industrial-weighing-solutions-high-precision-weigh-sensors00070049
Specifications - Weigh module SPE403-C
| Maximum Capacity | 420 g |
| Readability | 0.001 g |
| Repeatability (sd) @ nominal load | 0.8 mg |
| Interfaces | EtherNet/IP ProfiNet TCP/IP |
| Protection Rating | IP54 IP66 |
| Dimensions (LxHxW) | 244.5 mm x 122 mm x 59 mm |
| Product Line | SPE |
| Internal Adjustment | Yes |
| Internal Electronics | Yes |
| Maximum Preload | 30 g |
| Legal for Trade | No |
| Washdown | Optional |
| Power Supply | Power over Ethernet |
| Interface Update Rate (Max) | 122 Hz 488 Hz |
Effortless Engineering and Installation
Minimize programming time with standardized interface implementation, device description files, and sample codes.
Industrial Ethernet Connectivity
Fully integrated Industrial Ethernet interfaces (PROFINET, EtherNet/IP) allow direct integration into a real-time automation network.
Automatic Routine Testing
The module's functionality can be automatically verified at any time with the internal calibration weight, saving the effort of manual tests with external weights.
Simplified Clean-In-Place
The optional washdown module protects the weigh module during inline cleaning processes.
