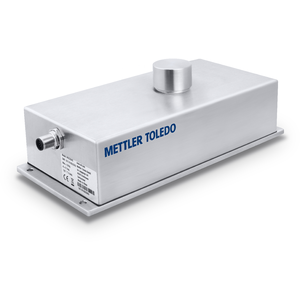

Weighing Module WKC204C
Compact Weigh Modules.WKC weigh modules offer a compact and cost-effective solution for on-board weighing in automated applications where high resolution is needed.
Compact Design
Fully integrated electronics help to save space in the machine/instrument design. No additional unit is needed for communication.
Quick Functionality Test
Thanks to the internal weight, it is possible to check correct functioning of the weigh module at any time, even with preloads.
Durable
Stainless-steel housing and coated connection cable protect the weigh module against external physical and electromagnetic influences.
Material No.: 30248307
Product Family:industrial-weighing-solutions-high-precision-weigh-sensors00070021
Specifications - Weighing Module WKC204C
| Maximum Capacity | 220 g |
| Readability | 0.1 mg |
| Repeatability (sd) @ nominal load | 0.2 mg |
| Interfaces | RS232 RS422 |
| Protection Rating | IP42 |
| Dimensions (LxHxW) | 251.5 mm x 82.5 mm x 112 mm |
| Product Line | WKC |
| Internal Adjustment | Yes |
| Internal Electronics | Yes |
| Maximum Preload | 30 g |
| Legal for Trade | No |
| Washdown | No |
| Power Supply | 12 to 24 V DC |
| Interface Update Rate (Max) | 92 Hz |
High Throughput
Up to 92 weight values per second can be delivered from the load cell, making it suitable for filling and dispensing applications with highest speed requirements.
Reliable Weight Results
Weigh module can be programmed to perform internal adjustment automatically in case of a temperature change in the environment. This would ensure the reliability of the weighing results even with changing environmental conditions.
Standardized Connector
Standard M12 connector of the weigh module enables using standard cables from the market. This increases flexibility of selection from different options, and facilitates purchasing.
