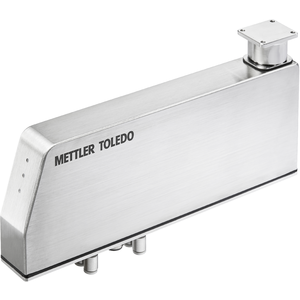

Weighing Module WMF204C-W/PN
High Precision Weigh Modules.WMF modules with their slim and compact design are tailored for multi-line automation networks which are directly connected to control systems.
Compact Size
Small width of 25mm enables building arrays with minimal pitch and allows multi-line weighing in small spaces to achieve high throughput in production.
Industrial Ethernet
Fully integrated Industrial Ethernet interface (PROFINET IO RT) and Ethernet TCP/IP allow direct integration into a real-time automation network.
Overload Protection
Robust overload protection protects the weigh module in the event of malfunction of handling devices or mistakes during installation.
Material No.: 30282232
Product Family:industrial-weighing-solutions-high-precision-weigh-sensors00070025
Specifications - Weighing Module WMF204C-W/PN
| Maximum Capacity | 220 g |
| Readability | 0.1 mg |
| Repeatability (sd) @ nominal load | 0.13 mg |
| Interfaces | ProfiNet TCP/IP |
| Protection Rating | IP44 IP65 |
| Dimensions (LxHxW) | 200 mm x 100 mm x 25 mm |
| Product Line | WMF |
| Internal Adjustment | Yes |
| Internal Electronics | Yes |
| Maximum Preload | 50 g |
| Legal for Trade | No |
| Washdown | Yes |
| Power Supply | Power over Ethernet |
| Interface Update Rate (Max) | 92 Hz 366 Hz |
Functionality Test
The module can be verified at any time with the internal calibration weight which ensures correct functioning of the weigh module without stopping the application.
Clean-In-Place
WMF weigh modules have IP44 in use/operation, and the additional wash-down option enables an IP rating of IP65 during the cleaning operation.
