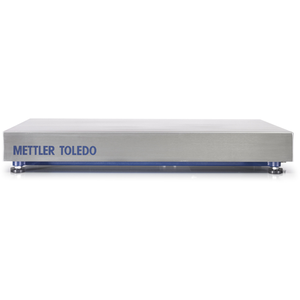

Weighing Platform PBA655-BC300 US
For Accurate Weighing.
For High Precision Applications
The PBA655 extremely robust platform design features an approvable resolution of OIML 6'000e and NTEP 10'000d for optimal weighing precision.
Highly Durable
The load frame is powder-coated and the load plate consists of brushed stainless steel. This stands for high durability over a long period of time.
Damage Protected
The PBA655 platform feature several optimal positioned and adjusted overload stops to ensure best possible Load Cell protection.
Material No.: 30024674
Product Family:platform-scale00080074
Specifications - Weighing Platform PBA655-BC300 US
| Maximum Capacity | 500 lb (300 kg) |
| Readability | 0.01 lb (5 g) |
| Material | Powder Coated Carbon Steel |
| Repeatability (sd) | 0.0082 lb (3.7 g) |
| Protection Rating | IP65 |
| Scale Interface | Analog |
| Platform Size (LxHxW) | 19.7 in x 4.33 in x 25.6 in (500 mm x 110 mm x 650 mm) |
| Hazardous Approval | No |
| Readability (Certified) | 0.05 lb (50 g) |
| Repeatability | 0.01 lb |
| Repeatability, typical | 5 g |
| Repeatability, (typical) | 0.01 lb |
| Dimensions (LxHxW) | 19.7 in x 4.33 in x 25.6 in (500 mm x 110 mm x 650 mm) |
| Weighing Pan Dimensions (LxHxW) | 19.7 in x 2.87 in x 25.6 in (500 mm x 73 mm x 650 mm) |
| Cable | 8.2 ft (2.5 m) |
| Environment | Dusty & Light Wet (IP65) |
| Dimensions/Platform Size | from 19.8" to 31.5" from 501 to 800 mm |
| Legal for Trade | NTEP OIML |
| Hazardous Area | Non-hazardous area |
| Hygienic Design | No |
| Linearity, typical | 10 g |
| Linearity (typical) | 0.02 lb |
| Platform Type | Bench Platforms |
