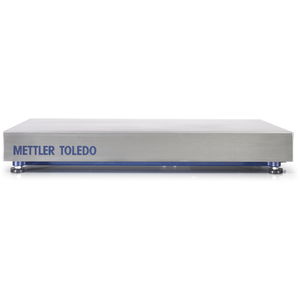

Weighing Platform PBA655-CC60 US
For Accurate Weighing.
For High Precision Applications
The PBA655 extremely robust platform design features an approvable resolution of OIML 6'000e and NTEP 10'000d for optimal weighing precision.
Highly Durable
The load frame is powder-coated and the load plate consists of brushed stainless steel. This stands for high durability over a long period of time.
Damage Protected
The PBA655 platform feature several optimal positioned and adjusted overload stops to ensure best possible Load Cell protection.
Material No.: 30024675
Product Family:platform-scale00080075
Specifications - Weighing Platform PBA655-CC60 US
| Maximum Capacity | 100 lb (60 kg) |
| Readability | 0.002 lb (1 g) |
| Material | Powder Coated Carbon Steel |
| Repeatability (sd) | 0.0016 lb (0.7 g) |
| Protection Rating | IP65 |
| Scale Interface | Analog |
| Platform Size (LxHxW) | 23.6 in x 4.72 in x 31.5 in (600 mm x 120 mm x 800 mm) |
| Hazardous Approval | No |
| Readability (Certified) | 0.01 lb (10 g) |
| Repeatability | 0.002 lb |
| Repeatability, typical | 1 g |
| Repeatability, (typical) | 0.002 lb |
| Dimensions (LxHxW) | 23.6 in x 4.72 in x 31.5 in (600 mm x 120 mm x 800 mm) |
| Weighing Pan Dimensions (LxHxW) | 23.6 in x 3.27 in x 31.5 in (600 mm x 83 mm x 800 mm) |
| Cable | 8.2 ft (2.5 m) |
| Environment | Dusty & Light Wet (IP65) |
| Dimensions/Platform Size | from 19.8" to 31.5" from 501 to 800 mm |
| Legal for Trade | NTEP OIML |
| Hazardous Area | Non-hazardous area |
| Hygienic Design | No |
| Linearity, typical | 2 g |
| Linearity (typical) | 0.005 lb |
| Platform Type | Bench Platforms |
