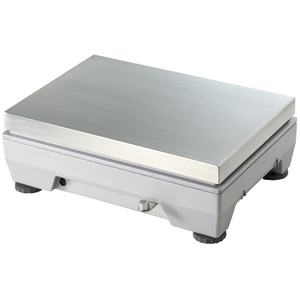

Weighing Platform PBD555-15LA/65
For best performance.
Strain gauge technology
This strain gauge platform includes the weighing tecnology with the calibration datas, which offers "plug and weigh"
Durable, rugged and dustproof
Suitable for usage in tough and dusty industrial environments with aluminium die cast housing, overload protection and IP65 sealing.
Digital Scale Connection SICSpro
Guaranteed precise weighing results thanks to excellent immunity of digital signals from electromagnetic influences
Material No.: 30061237
Product Family:platform-scale00080066
Specifications - Weighing Platform PBD555-15LA/65
| Maximum Capacity | 30 lb (15 kg) |
| Readability | 0.002 lb (0.2 g) |
| Material | Aluminum die casting |
| Repeatability (sd) | 0.00017 lb (0.08 g) |
| Protection Rating | IP65 |
| Scale Interface | SICSpro |
| Platform Size (LxHxW) | 9.7 in x 4.3 in x 14 in (240 mm x 110 mm x 350 mm) |
| Hazardous Approval | No |
| Resolution | 0.0005 lb |
| Readability (Certified) | 2 g |
| Repeatability | 0.0005 lb |
| Repeatability, typical | 0.08 g |
| Repeatability, (typical) | 0.00017 lb |
| Dimensions (LxW) | 9.7 in x 14 in (240 mm x 110 mm x 350 mm) |
| Weighing Pan Dimensions (LxW) | 14 in (240 mm x 350 mm) |
| Cable | 3.3 ft (1 m) |
| Environment | Dusty & Light Wet (IP65) |
| Dimensions/Platform Size | </=400 mm from 6.3" to 15.7" |
| Legal for Trade | OIML |
| Hazardous Area | Non-hazardous area |
| Hygienic Design | No |
| Linearity, typical | 0.5 g |
| Linearity (typical) | 0.001 lb |
| Platform Type | Bench Platforms |
