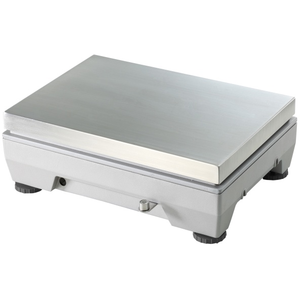

Weighing Platform PBD555-35LA
For best performance.
Strain gauge technology
This strain gauge platform includes the weighing tecnology with the calibration datas, which offers "plug and weigh"
Durable and Rugged
Suitable for usage in tough industrial environments with durable aluminium die cast housing and overload protection.
Digital Scale Connection SICSpro
Guaranteed precise weighing results thanks to excellent immunity of digital signals from electromagnetic influences
Material No.: 30061236
Product Family:platform-scale00080067
Specifications - Weighing Platform PBD555-35LA
| Maximum Capacity | 60 lb (35 kg) |
| Readability | 0.005 lb (0.5 g) |
| Material | Aluminum die casting |
| Repeatability (sd) | 0.00044 lb (0.2 g) |
| Protection Rating | IP54 |
| Scale Interface | SICSpro |
| Platform Size (LxHxW) | 9.7 in x 4.3 in x 14 in (240 mm x 110 mm x 350 mm) |
| Hazardous Approval | No |
| Resolution | 0.001 lb |
| Readability (Certified) | 5 g |
| Repeatability | 0.001 lb |
| Repeatability, typical | 0.2 g |
| Repeatability, (typical) | 0.00044 lb |
| Dimensions (LxW) | 9.7 in x 14 in (240 mm x 110 mm x 350 mm) |
| Weighing Pan Dimensions (LxW) | 14 in (240 mm x 350 mm) |
| Cable | 3.3 ft (1 m) |
| Environment | Dry (<IP65) |
| Dimensions/Platform Size | </=400 mm from 6.3" to 15.7" |
| Legal for Trade | OIML |
| Hazardous Area | Non-hazardous area |
| Hygienic Design | No |
| Linearity, typical | 1 g |
| Linearity (typical) | 0.002 lb |
| Platform Type | Bench Platforms |
