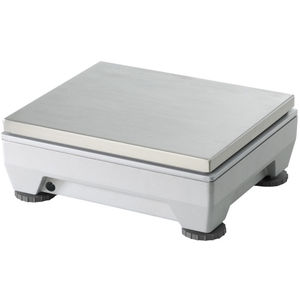

Weighing Platform PBD555-3SM
For best performance.
Strain gauge technology
This strain gauge platform includes the weighing tecnology with the calibration datas, which offers "plug and weigh"
Durable and Rugged
Suitable for usage in tough industrial environments with durable aluminium die cast housing and overload protection.
Digital Scale Connection SICSpro
Guaranteed precise weighing results thanks to excellent immunity of digital signals from electromagnetic influences
Material No.: 30061231
Product Family:platform-scale00080070
Specifications - Weighing Platform PBD555-3SM
| Maximum Capacity | 6 lb (3 kg) |
| Readability | 0.0005 lb (0.05 g) |
| Material | Aluminum die casting |
| Repeatability (sd) | 0.00004 lb (0.02 g) |
| Protection Rating | IP54 |
| Scale Interface | SICSpro |
| Platform Size (LxHxW) | 7.9 in x 3.7 in x 9.8 in (200 mm x 95 mm x 240 mm) |
| Hazardous Approval | No |
| Resolution | 0.0001 lb |
| Readability (Certified) | 0.5 g |
| Repeatability | 0.0001 lb |
| Repeatability, typical | 0.02 g |
| Repeatability, (typical) | 0.00004 lb |
| Dimensions (LxW) | 7.9 in x 9.8 in (200 mm x 95 mm x 240 mm) |
| Weighing Pan Dimensions (LxW) | 9.8 in (200 mm x 240 mm) |
| Cable | 3.3 ft (1 m) |
| Environment | Dry (<IP65) |
| Dimensions/Platform Size | </=400 mm from 6.3" to 15.7" |
| Legal for Trade | OIML |
| Hazardous Area | Non-hazardous area |
| Hygienic Design | No |
| Linearity, typical | 0.1 g |
| Linearity (typical) | 0.0002 lb |
| Platform Type | Bench Platforms |
