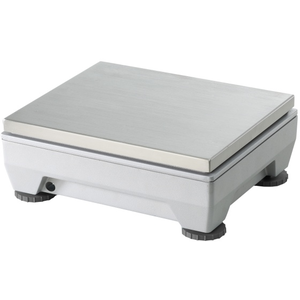

Weighing Platform PBD555-6SM
For best performance.
Strain gauge technology
This strain gauge platform includes the weighing tecnology with the calibration datas, which offers "plug and weigh"
Durable and Rugged
Suitable for usage in tough industrial environments with durable aluminium die cast housing and overload protection.
Digital Scale Connection SICSpro
Guaranteed precise weighing results thanks to excellent immunity of digital signals from electromagnetic influences
Material No.: 30061232
Product Family:platform-scale00080072
Specifications - Weighing Platform PBD555-6SM
| Maximum Capacity | 12 lb (6 kg) |
| Readability | 0.0005 lb (0.1 g) |
| Material | Aluminum die casting |
| Repeatability (sd) | 0.00009 lb (0.04 g) |
| Protection Rating | IP54 |
| Scale Interface | SICSpro |
| Platform Size (LxHxW) | 7.9 in x 3.7 in x 9.8 in (200 mm x 95 mm x 240 mm) |
| Hazardous Approval | No |
| Resolution | 0.0002 lb |
| Readability (Certified) | 1 g |
| Repeatability | 0.0002 lb |
| Repeatability, typical | 0.04 g |
| Repeatability, (typical) | 0.00009 lb |
| Dimensions (LxW) | 7.9 in x 9.8 in (200 mm x 95 mm x 240 mm) |
| Weighing Pan Dimensions (LxW) | 9.8 in (200 mm x 240 mm) |
| Cable | 3.3 ft (1 m) |
| Environment | Dry (<IP65) |
| Dimensions/Platform Size | </=400 mm from 6.3" to 15.7" |
| Legal for Trade | OIML |
| Hazardous Area | Non-hazardous area |
| Hygienic Design | No |
| Platform Type | Bench Platforms |
