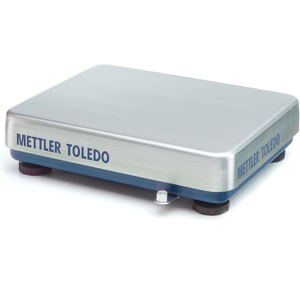

Weighing Platform PBD655-A12 US
The Plug and Weigh Design.The PBD655 platform is a true digital, pre-calibrated device designed for simplicity. Plug the platform into a suitable terminal and start weighing.
Ready to Operate in Seconds
The PBD655 platform is a true digital, pre-calibrated device designed for simplicity. Plug the platform into a suitable terminal and start weighing.
For High Precision Applications
The extremely robust platform design features an approvable resolution of NTEP 10'000d for optimal weighing and counting precision.
Highly Durable
The load frame is powder-coated and the load plate consists of brushed stainless steel. This stands for high durability over a long period of time.
Material No.: 30024639
Product Family:platform-scale00080061
Specifications - Weighing Platform PBD655-A12 US
| Maximum Capacity | 20 lb (12 kg) |
| Readability | 0.0005 lb (0.2 g) |
| Material | Powder Coated Carbon Steel |
| Repeatability (sd) | 0.00017 lb (0.08 g) |
| Protection Rating | IP65 |
| Scale Interface | SICSpro |
| Platform Size (LxHxW) | 9.4 in x 3.1 in x 11.8 in (240 mm x 80 mm x 300 mm) |
| Hazardous Approval | No |
| Readability (Certified) | 0.002 lb (2 g) |
| Repeatability | 0.00022 lb |
| Repeatability, typical | 0.08 g |
| Repeatability, (typical) | 0.00017 lb |
| Dimensions (LxHxW) | 11.8 in x 3.15 in x 15.7 in (300 mm x 86 mm x 400 mm) |
| Weighing Pan Dimensions (LxHxW) | 9.5 in x 1.73 in x 11.8 in (300 mm x 44 mm x 400 mm) |
| Cable | 8.5 ft (2.5 m) |
| Environment | Dusty & Light Wet (IP65) |
| Dimensions/Platform Size | </=400 mm from 6.3" to 15.7" |
| Legal for Trade | NTEP OIML |
| Hazardous Area | Non-hazardous area |
| Hygienic Design | No |
| Linearity, typical | 0.5 g |
| Linearity (typical) | 0.001 lb |
| Platform Type | Bench Platforms |
