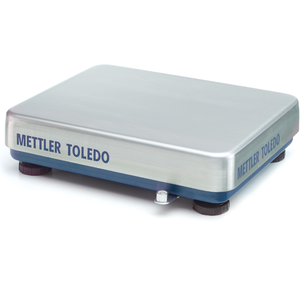

Weighing Platform PBD655-B120 US
The Plug and Weigh Design.The PBD655 platform is a true digital, pre-calibrated device designed for simplicity. Plug the platform into a suitable terminal and start weighing.
Ready to Operate in Seconds
The PBD655 platform is a true digital, pre-calibrated device designed for simplicity. Plug the platform into a suitable terminal and start weighing.
For High Precision Applications
The extremely robust platform design features an approvable resolution of NTEP 10'000d for optimal weighing and counting precision.
Highly Durable
The load frame is powder-coated and the load plate consists of brushed stainless steel. This stands for high durability over a long period of time.
Material No.: 30024743
Product Family:platform-scale00080069
Specifications - Weighing Platform PBD655-B120 US
| Maximum Capacity | 200 lb (120 kg) |
| Readability | 0.005 lb (2 g) |
| Material | Powder Coated Carbon Steel |
| Repeatability (sd) | 0.0017 lb (0.8 g) |
| Protection Rating | IP65 |
| Scale Interface | SICSpro |
| Platform Size (LxHxW) | 15.7 in x 3.3 in x 19.7 in (400 mm x 86 mm x 500 mm) |
| Hazardous Approval | No |
| Readability (Certified) | 0.02 lb (20 g) |
| Repeatability | 0.005 lb |
| Repeatability, typical | 0.8 g |
| Repeatability, (typical) | 0.0017 lb |
| Dimensions (LxHxW) | 19.7 in x 3.39 in x 25.6 in (500 mm x 110 mm x 650 mm) |
| Weighing Pan Dimensions (LxHxW) | 15.7 in x 1.89 in x 19.7 in (500 mm x 48 mm x 650 mm) |
| Cable | 8.5 ft (2.5 m) |
| Environment | Dusty & Light Wet (IP65) |
| Dimensions/Platform Size | from 15.8" to 19.7" from 401 to 500 mm |
| Legal for Trade | NTEP OIML |
| Hazardous Area | Non-hazardous area |
| Hygienic Design | No |
| Linearity, typical | 5 g |
| Linearity (typical) | 0.01 lb |
| Platform Type | Bench Platforms |
