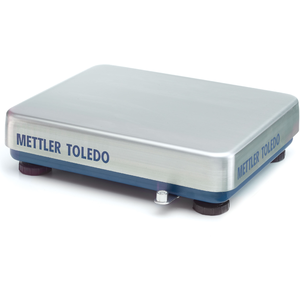

Weighing Platform PBD655-B60 US
The Plug and Weigh Design.The PBD655 platform is a true digital, pre-calibrated device designed for simplicity. Plug the platform into a suitable terminal and start weighing.
Ready to Operate in Seconds
The PBD655 platform is a true digital, pre-calibrated device designed for simplicity. Plug the platform into a suitable terminal and start weighing.
For High Precision Applications
The extremely robust platform design features an approvable resolution of NTEP 10'000d for optimal weighing and counting precision.
Highly Durable
The load frame is powder-coated and the load plate consists of brushed stainless steel. This stands for high durability over a long period of time.
Material No.: 30024742
Product Family:platform-scale00080064
Specifications - Weighing Platform PBD655-B60 US
| Maximum Capacity | 100 lb (60 kg) |
| Readability | 0.002 lb (1 g) |
| Material | Powder Coated Carbon Steel |
| Repeatability (sd) | 0.00088 lb (0.4 g) |
| Protection Rating | IP65 |
| Scale Interface | SICSpro |
| Platform Size (LxHxW) | 15.7 in x 3.3 in x 19.7 in (400 mm x 86 mm x 500 mm) |
| Hazardous Approval | No |
| Readability (Certified) | 0.01 lb (10 g) |
| Repeatability | 0.002 lb |
| Repeatability, typical | 0.4 g |
| Repeatability, (typical) | 0.00088 lb |
| Dimensions (LxHxW) | 19.7 in x 3.39 in x 25.6 in (500 mm x 110 mm x 650 mm) |
| Weighing Pan Dimensions (LxHxW) | 15.7 in x 1.89 in x 19.7 in (500 mm x 48 mm x 650 mm) |
| Cable | 8.5 ft (2.5 m) |
| Environment | Dusty & Light Wet (IP65) |
| Dimensions/Platform Size | from 15.8" to 19.7" from 401 to 500 mm |
| Legal for Trade | NTEP OIML |
| Hazardous Area | Non-hazardous area |
| Hygienic Design | No |
| Linearity, typical | 2 g |
| Linearity (typical) | 0.005 lb |
| Platform Type | Bench Platforms |
