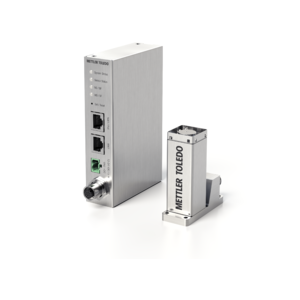

Weighing System SPC115-111
Enables Lean Machine Design
With a 1-inch pitch, SPC is arguably the smallest high-precision sensor in the world. Its small size allows dense sensor packing in multi-line machines.
Saves Space
The small electronic unit saves precious cabinet space; flexible mounting brackets allow for easy installation on a flat surface or DIN rail.
Enables Efficient Cleaning
The optional washdown module adds IP54 and IP65 ingress protection when cleaning, making it perfect for dusty environments.
Material No.: 30532573
Product Family:industrial-weighing-solutions-high-precision-weigh-sensors00070020
Specifications - Weighing System SPC115-111
| Maximum Capacity | 11 g |
| Readability | 0.01 mg |
| Repeatability (sd) @ nominal load | 0.02 mg |
| Interfaces | EtherNet/IP ProfiNet TCP/IP |
| Protection Rating | IP20 IP30 IP54 IP56 |
| Dimensions (LxHxW) | 71.5 mm x 74.45 mm x 25.2 mm |
| Product Line | SPC |
| Internal Adjustment | No |
| Internal Electronics | No |
| Maximum Preload | 4 g |
| Legal for Trade | No |
| Washdown | Optional |
| Power Supply | 12 to 24 V DC Power over Ethernet |
| Interface Update Rate (Max) | 92 Hz 366 Hz |
Maximizes Your Throughput
SPC delivers real-time accuracy including adjustable electronic filters to ensure stable results under challenging conditions. In-process control weighing is easy to implement in any critical operation.
