Development of new chemical entities, screening of reaction parameters and characterization of chemical or physical processes requires reactors that are designed to be flexible but also as close to the problem as possible.

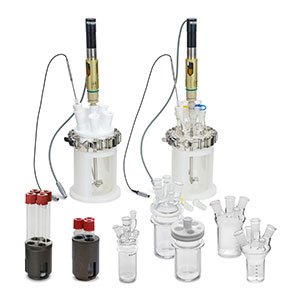

The EasyMax reactor portfolio is designed for fast and smooth development. While the one-piece reactors are modeled on the round bottom flasks, but with excellent temperature control capaibilties, the two-piece reactors are more versatile, support a broad range of applications and can characterize reactions and crystallization processes.
For pressure applications, metal reactors with an operatiing pressure of up to 200 bar are available. These are suitable for applications requiring overpressure, including:
The optional Heat Flow Calorimetry Kit provides additional information regarding scalbility and criticality of a given reaction.
| 8 mL Glass Reactor Set | 10 mL Glass Reactor Set | 25 mL Glass Reactor Set | 50 mL One-Piece Reactor Set | 100 mL One-Piece Glass Reactor Set | 400 mL One-Piece Glass Reactor Set | |
| Temperature Range | -40 °C - 180 °C | -40 °C - 180 °C | -40 °C - 180 °C | -40 °C - 180 °C | -40 °C - 180 °C | -40 °C - 180 °C |
| Operating Volume | 0.5 to 8 mL | 1 to 5 mL | 3 to 25 mL | 30 to 50 mL | 30 to 100 mL | 80 to 400 mL |
| Designed for | EasyMax 102 | EasyMax 102 | EasyMax 102 | EasyMax 102 | EasyMax 102 EasyMax 402 | EasyMax 402 |
| Capable for Calorimetry | No | No | No | No | Yes | Yes |
| Material Number | 30207789 | 51161714 | 51161854 | 51161838 | 51161805 | 30138936 |
| 50 mL Two-piece Glass Reactor Set | 100 mL Two-piece Glass Reactor Set for EasyMax 102 | 100 mL Two-piece Glass Reactor Set for EasyMax 402 | 100 mL Two-piece High Workup Volume Reactor | 100 mL Two-piece High Workup Volume Reactor Set | 400 mL Two-piece Reactor Set | |
| Temperature Range | -40 °C - 180 °C | -40 °C - 180 °C | -40 °C - 180 °C | -40 °C - 180 °C | -40 °C - 180 °C | -40 °C - 180 °C |
| Operating Volume | 30 to 50 mL | 30 to 100 mL | 30 to 100 mL | 30 to 200 mL | 30 to 200 mL | 80 to 400 mL |
| Designed for | EasyMax 102 | EasyMax 102 | EasyMax 402 | EasyMax 102 | EasyMax 402 | EasyMax 402 |
| Capable for Calorimetry | No | Yes | No | Yes | No | Yes |
| Material Number | 51161712 | 51161708 | 30125690 | 30111634 | 0111633 | 30111619 |
| EasyMax 50 mL Pressure Reactor Set | EasyMax 100 mL Pressure Reactor Set | EasyMax 100 mL Pressure Reactor Set | |
| Temperature Range | -20 °C - 180 °C | -20 °C - 180 °C | -20 °C - 180 °C |
| Operating Volume | 25 to 50 mL | 25 to 100 mL | 25 to 100 mL |
| Operating Pressure | 0 to 200 bar | 0 to 60 bar | 0 to 100 bar |
| Designed for | EasyMax 102 | EasyMax 102 | EasyMax 102 |
| Bottom drain valve | No | No | No |
| Capable for Calorimetry | No | No | No |
| Material Number | 51161870 | 30030946 | 30030945 |
